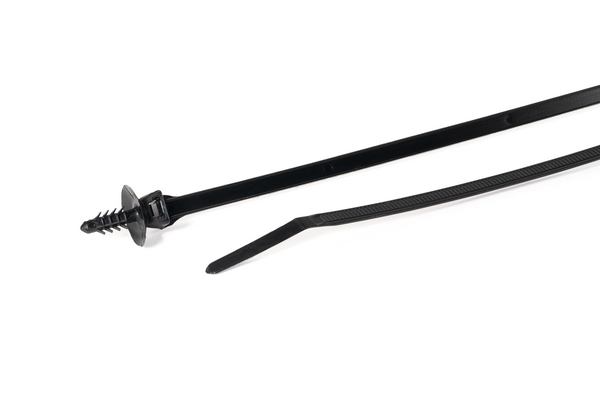

1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes T50ROSFTQM6

Fir Tree Parts FT6, Article number: 157-00163

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes

Certifications & Approvals

Application

Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.

Fir Tree Parts FT6 is suitable for following markets and industries

Colour Grey (GY)
Fixation Method Fir Tree
GLOBAL PART DESCRIPTION T50ROSFTQM6-PA66HIRHS-GY
Identification Plate Position none
Pack Cont. 500
Package Quantity per bag
Product Family Fir Tree Parts FT6
Product Group 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Bundle ∅ max. 50.0mm
Bundle ∅ min. 1.6mm
Diameter (D) 6.0mm
Disc ∅ 15.88mm
for Hole ∅ (FH) M6
for Panel Thickness min - max 0.6 - 7 mm
for Panel Thickness min - max 0 - 0.3 "
Height (H) 13.8mm
Length (L) 203.6mm
Length of Fir Tree 13.8mm
Min.Tensile Strength 222N
Panel Thickness max. 0.6 – 7.0mm
Thickness (T) 1.5mm
Width (W) 5.08mm
∅ D 0.25"
Flammability UL 94 V2
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Operating Temperature - °C -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026464626
ETIM 6.0 EC000046
UNSPSC Key 39121703
