10/09/2025

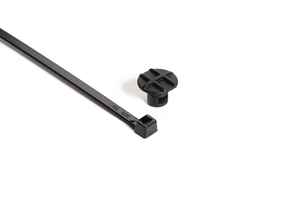

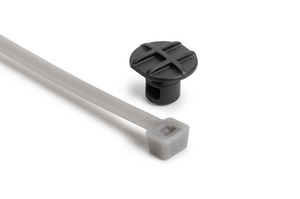

Fixing tie for cable bundles, ⌀4.0-50.0mm, black, 1000pcs.
Art.-No. 156-02568 | T50RPBM9SET-PA12/PA66HIRHSUV-BK |

Copied
This button head mount includes a cable tie to secure cables and wire bundles to panels.
Tracker movements are no longer an issue with the PBM9 kit.
Tracker movements are no longer an issue with the PBM9 kit.
Button Mount T50RPBM9 (Set)
Cable Tie T50RPBM9 (Set)
Cable Tie T50RPBM9 (Set)

    Add to watchlist
    Downloads
    Application This button head mount includes a T50R tie in a kit to secure cables and wire bundles on solar modules and mounting structures. The mount conveniently fits existing oval (9x14mm) and round holes (9-12mm) with zero insertion force. Made from impact-modified, heat-resistant, UV-stabilised polyamide 6.6, which is specifically formulated for extreme environments. The mount is designed to withstand movement, particularly on single-axis tracker systems, for years of dependable performance.
    Colour Black (BK)
    Fixation Method Button Head
    Identification Plate Position none
    Key product features for direct fixation
    Material Polyamide 12 (PA12), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50RPBM9SET-PA12/PA66HIRHSUV-BK
    Package Content 1000pcs.
    Package Content packed in bag
    Product Group 2-piece fixing ties with button mount, for round holes
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T50RPBM9SET
    UV-Stabilised Yes
    ⌀ (D2) 17.0mm
    ⌀ D2 0.67"
    Bundle ⌀ 4.0-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 4.0mm
    Height (H) 13.40mm
    Length (L) 203.2mm
    Panel Thickness max. 3.0mm
    Width (W) 17.0mm
    for Hole ⌀ (FH) 9.0 mm, 9.0 x 12.0 mm, 9.0 x 14.0 mm
    for Panel Thickness min - max - 3
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +120 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    Customs Number 3926909988
    GTIN-13 / EAN 4031026682372
    Packaging 3 - Height (m) 0.168275m
    Packaging 3 - Length (m) 0.26035m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0092m³
    Packaging 3 - Width (m) 0.20955m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
