Fixing tie for stud, ⌀1.0-45.0mm, black, 500pcs.
Art.-No. 156-03434
| T50RSBD5-6SD20-PA66HIRHS-BK
|
Copied
- Pre-assembled with cable tie and weld stud mounting base
- Quick and easy installation
- Head rotates into perfect position for installation
- 'Soft-push' design for tool-free installation
- Mushroom-shaped SBD handles insulation or a sound-deadening blanket
More products in this product group:
| Application | Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured |
| Cable Tie | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Colour | Black (BK) |
| Ergonomy Feature |

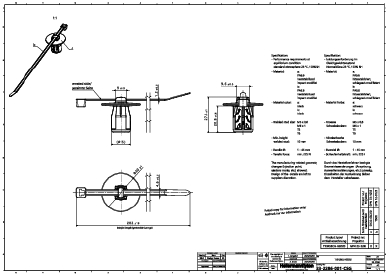

≤ 30 N assembly force: Product fulfills defined assembly force requirements. Details and tolerances as per technical drawing. Actual force may vary depending on the surface, assembly situation and accessibility. Verify applicability under real conditions before use to ensure applicability for the intended purpose. |
| Fixation Method | Weld Stud Fixing |
| Foot Part | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Identification Plate Position | none |
| Key product features | ergonomic design, small diameter |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Mechanical Strength | 225N |
| PART DESCRIPTION | T50RSBD5-6SD20-PA66HIRHS-BK |
| Package Content | 500pcs. |
| Package Content packed in | bag |
| Product Group | 2-Piece Fixing Ties for Weld Studs |
| Short Description | 2-piece cable tie with weld stud mounting base, ⌀1.0-45.0mm, black |
| Tie Closure | plastic pawl |
| Type | T50RSBD5-6SD20 |
| Weight/Unit | 0.004114kg |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026744469 |
| Packaging 1 - Height (m) | 0.105m |
| Packaging 1 - Length (m) | 0.56m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.028224m³ |
| Packaging 1 - Weight (kg) | 2.100597kg |
| Packaging 1 - Width (m) | 0.48m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 9.222388kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 24000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 131.688kg |
| Packaging 4 - Width (m) | 0.8m |
