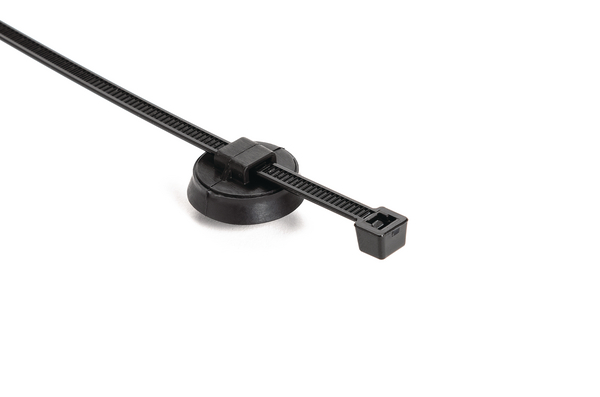

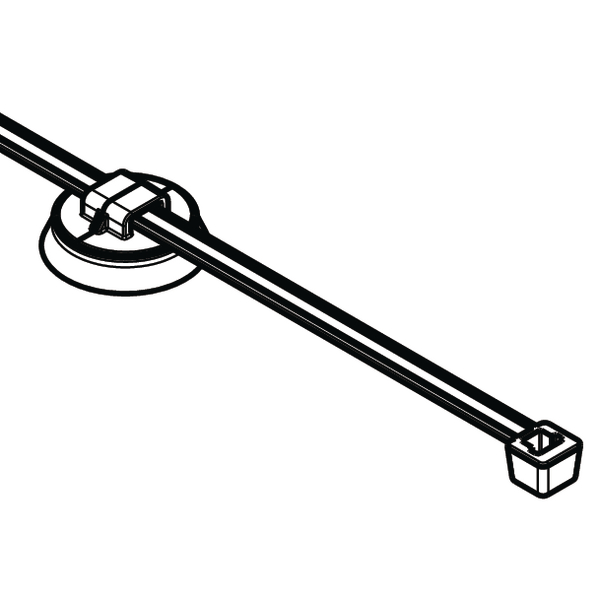

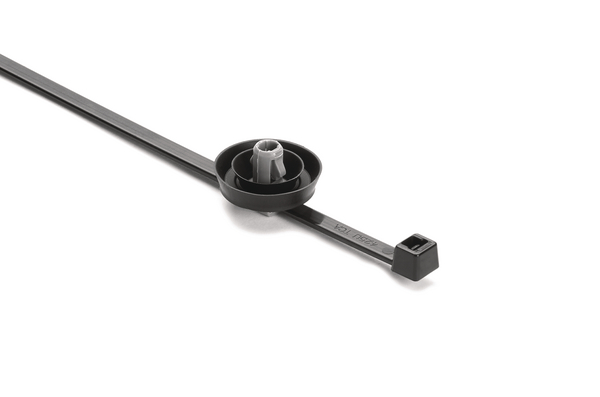

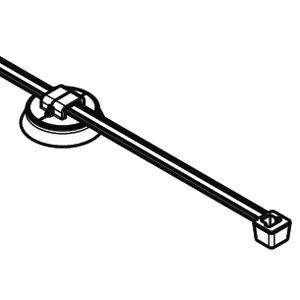

Fixing tie for hole (round), inside serrated, ⌀3.0-50.0mm, black/grey, 2000pcs.
Art.-No. 156-02380
| T50RSRAH6.5D1.4TSD-PA66HS/TPE-BK/GY
Copied
- Once installed, perpendicular arrowhead arms reduce movement and will not collapse when exposed to water or load
- Integrated dual seal meets IP65 for protection against water, dust, chemicals, air and sound
- 15 mm and 25 mm offset designs fasten bundles away from obstructions, heat or sources of abrasion
- Superior design and high-spec materials maintain routing position to deliver consistent performance in the most rugged applications
- Low-profile design saves 5 mm of height when installed
- All ties rated to 222 N (50 lb) tensile strength to ensure long-term bundling reliability
- Sealed arrowhead meets USCAR44 push in, pull off and sealing standards
| Color | Black (BK), Gray (GY) |
| Description | HellermannTyton sealed clips and ties are constructed of engineered nylon with a dual TPE (thermo plastic elastomer) seal. The combination of dual seal and engineered arrowhead provide superior sealing performance for applications where protection from moisture and debris is essential. |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 225N |
| PART DESCRIPTION | T50RSRAH6.5D1.4TSD-PA66HS/TPE-BK/GY |
| Packaging Type | bag |
| Part No. | 156-02380 |
| Product family | 2-Piece Tie Assemblies |
| Short Desc. | 2-Piece Cable Tie with Arrowhead Mount with Seal, 1.2 - 1.8mm panel, 6.5mm/6.35mm HEX, PA66HS/TPE, Black/Gray, 2000/ctn |
| Technical Description | Quote and Sell to GM only. Please order 156-02705. |
| Type | T50RSRAH6.5D1.4TSD |
| UV Resistant | No |
| Cable Tie Closure | plastic pawl |
| Disc Diameter (metric) | 22,3mm |
| Fixation Method | Arrowhead |
| Height (imperial) | .59" |
| Height (metric) | 15.08mm |
| Identification Plate Position | none |
| Length (imperial) | 8.0" |
| Length (metric) | 202.0mm |
| Max. Bundle Diameter (imperial) | 1.97" |
| Max. Bundle Diameter (metric) | 50.0mm |
| Max. Mounting Hole Diameter (imperial) | 0.26" |
| Max. Panel Thickness (imperial) | 0.07" |
| Max. Panel Thickness (metric) | 1.8mm |
| Min. Bundle Diameter (imperial) | 0.12" |
| Min. Bundle Diameter (metric) | 3.0mm |
| Min. Mounting Hole Diameter (imperial) | 0.25" |
| Min. Panel Thickness (imperial) | 0.05" |
| Min. Panel Thickness (metric) | 1.2mm |
| Mounting Hole Diameter (imperial) | 0.25 " (HEXAGONAL), 0.26 " |
| Mounting Hole Diameter (metric) | 6.35 mm (hexagonal), 6.5 mm |
| Mounting Hole Shape | Round |
| Panel Thickness (imperial) | 0.05 - 0.07" |
| Panel Thickness (metric) | 1.2 - 1.8mm |
| Releasable Closure | No |
| Width (imperial) | 0.87" |
| Width (metric) | 22.3mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Cable Tie | Polyamide 6.6 heat stabilized (PA66HS) |
| Material | PA66HS, TPE |
| Material | Polyamide 6.6 heat stabilized (PA66HS), Thermoplastic Elastomer (TPE) |
| Material Foot Part | TPE |
| Operating Temperature | -40°F to +257°F (-40°C to +125°C) |
| Prop65 Warning | No |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
