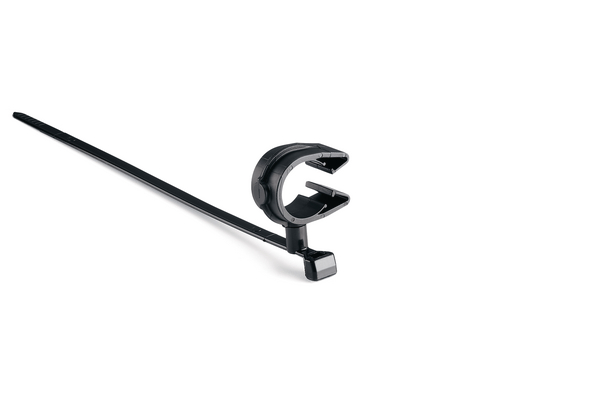

Fixing tie with pipe/tube holder, ⌀14.0-18.3mm, black, 1000pcs.
Art.-No. 156-01656
| T50SMVCMOC16M-PA66HIRHSUV-BK
Copied
- Patented retention design on clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
- Controlled flex and angled entry promote easy installation.
- Independent rotation allows for adjustable routing orientation.
- Cable tie accommodates wide range of secondary bundle sizes.
More products in this product group:
| Brand Family | MOC-Series |
| Color | Black (BK) |
| Description | The MOC to Swivel Tie is a rotatable routing clip coupled to a cable tie that keeps two routings secured and separated. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness. The swivel coupler allows the two routings to rotate independently of each other. |
| Key product features | lockable, rotatable |
| Min. Tensile Strength (imperial) | 50lbs |
| Min. Tensile Strength (metric) | 225N |
| PART DESCRIPTION | T50SMVCMOC16M-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 156-01656 |
| Product family | MOC Cable Ties |
| Product family | Products for wires and hoses, Products for parallel/multiple routing |
| Short Desc. | MOC Clip, 16 mm, Assembled to T50SMVC Swivel Tie, PA66HIRHSUV, Black, 1000/ctn |
| Type | T50SMVCMOC16M |
| UV Resistant | Yes |
| Depth (imperial) | 0.47" |
| Depth (metric) | 12.0mm |
| Fixation Method | Omega Clip |
| Height (imperial) | 1.48" |
| Height (metric) | 37.5mm |
| Identification Plate Position | none |
| Length (imperial) | 1.01" |
| Length (metric) | 25.7mm |
| Length 2 (imperial) | 0.76" |
| Length 2 (metric) | 19.2mm |
| Max. Bundle Diameter (imperial) | 0.72" |
| Max. Bundle Diameter (metric) | 18.3mm |
| Max. Cable Diameter (imperial) | 1.97" |
| Max. Cable Diameter (metric) | 50.0mm |
| Miin. Cable Diameter (imperial) | 0.08" |
| Min. Bundle Diameter (imperial) | 0.55" |
| Min. Bundle Diameter (metric) | 14.0mm |
| Min. Cable Diameter (metric) | 2.0mm |
| Nominal Bundle Diameter (imperial) | 0.63" |
| Nominal Bundle Diameter (metric) | 16.0 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen Free | Yes |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
