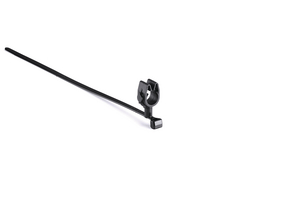

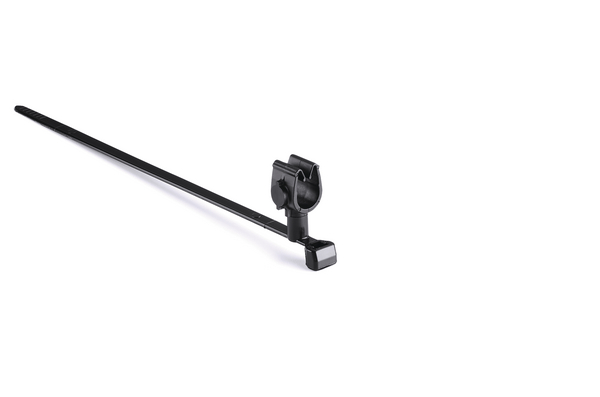

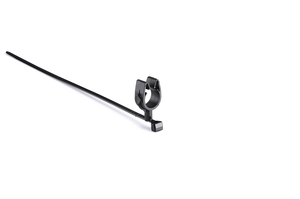

Fixing tie with pipe/tube holder, ⌀8.0-10.0mm, black, 1000pcs.
Art.-No. 156-01786 | T50SMVCMOC9M180-PA66HIRHSUV-BK

Patented retention design on clip features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
Controlled flex and angled entry promote easy installation.
Independent rotation allows for adjustable routing orientation.
Cable tie accommodates wide range of secondary bundle sizes.

Package size

500 pcs.

1000 pcs.

More products in this product group:

Application	These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.
Brand Family	MOC-Series
Color	Black (BK)

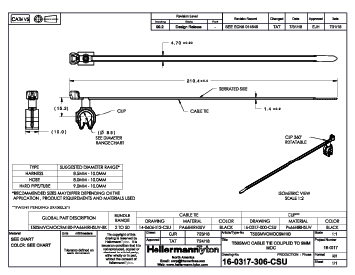

Description	The MOC 180 to Swivel Tie is a rotatable routing clip coupled to a cable tie that keeps two routings secured and separated. Tie provides additional security against axial slip by clamping around solid tube, pipe or harness. The clip's orientation allows the second routing to be assembled in the direction of the first routing. The swivel coupler allows the two routings to rotate independently of each other.
Min. Tensile Strength (imperial)	50lbs
Min. Tensile Strength (metric)	225N
PART DESCRIPTION	T50SMVCMOC9M180-PA66HIRHSUV-BK
Packaging Type	pack
Part No.	156-01786
Product family	MOC Cable Ties
Product family	Products for wires and hoses, Products for parallel/multiple routing
Short Desc.	MOC Clip, 9 mm Transverse, Assembled to T50SMVC Swivel Tie, PA66HIRHSUV, Black, 1000/ctn
Type	T50SMVCMOC9M180
UV Resistant	Yes

Depth (imperial)	0.39"
Depth (metric)	10.0mm
Fixation Method	Omega Clip
Height (imperial)	1.27"
Height (metric)	32.3mm
Identification Plate Position	none
Length (imperial)	0.59"
Length (metric)	15.0mm
Length 2 (imperial)	0.61"
Length 2 (metric)	15.4mm
Max. Bundle Diameter (imperial)	0.39"
Max. Bundle Diameter (metric)	10.0mm
Max. Cable Diameter (imperial)	1.97"
Max. Cable Diameter (metric)	50.0mm
Miin. Cable Diameter (imperial)	0.08"
Min. Bundle Diameter (imperial)	0.31"
Min. Bundle Diameter (metric)	8.0mm
Min. Cable Diameter (metric)	2.0mm
Nominal Bundle Diameter (imperial)	0.35"
Nominal Bundle Diameter (metric)	9.0 mm

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen Free	Yes
Material	PA66HIRHSUV
Material	Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No


Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Pkg. Qty.	1000
Pkg. Qty.	1000Pieces
