Fixing tie with pipe/tube holder, black, 500Carton
Art.-No. 156-03493 | T50SMVCSGROC12-16M-PA66HIRHSUV-BK

Soft TPE over-mold prevents axial slide/rotation and protects sensitive HV cables.
Compact size for mounting in tight spaces.
Fine-pitch ratchet provides controlled grip for a range of pipe sizes with one part.
Fully enclosed clamp prevents slip, crush and fallout under vacuum.
Release latch with simple twist of screwdriver.
Independent rotation allows for adjustable routing orientation.
Cable tie accommodates wide range of secondary bundle sizes.

More products in this product group:

Cable Tie	Polyamide 6.6, high impact modified, heat and UV-resistant (PA66HIRHSW)
Colour	Black (BK)

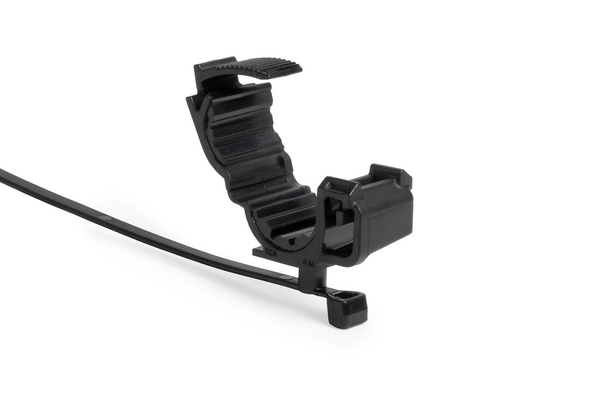

Description	HellermannTyton’s Ratchet O-Clamp with swivel cable tie is designed for tight spaces, maintaining a low-profile, adjustable grip around a routing while providing a robust mounting solution. Ideal for fluid routing and high-voltage cable management, this clamp includes a TPE liner to protect the routing and keep it in position. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail.
Fixation Method	Omega Clip
Foot Part	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
Identification Plate Position	none
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Min.Tensile Strength	445N
PART DESCRIPTION	T50SMVCSGROC12-16M-PA66HIRHSUV-BK
Package Content	500Carton
Product Family	Swivel tie and Ratchet O-Clamp
Product Group	2-piece fixing ties with pipe clip
Type	T50SMVCSGROC12-16M
UV-Stabilised	No
Weight/Unit	3.82832kg
