Fixing tie for stud, outside serrated, ⌀1.0-35.0mm, grey, 1000pcs.
Art.-No. 157-00191 | T50SOSSB5-High-E-C-CC-PA46-GY |

Copied
The fixing tie T50SOSSB5-High-E-C-CC for fixation on weld or ISO bolts.

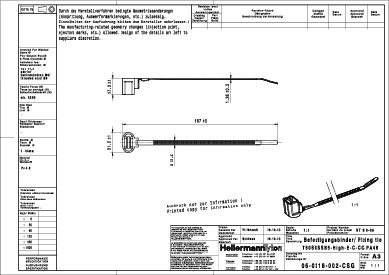

FixingTie_T50SOSSB5-High-E-C-CC
T50SOSSB5-High-E-C-CC.
T50SOSSB5-High-E-C-CC
T50SOSSB5-High-E-C-CC

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist
    Downloads
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Grey (GY)
    Fixation Method Weld Stud Fixing
    Identification Plate Position none
    Key product features products for automatic tools
    Material Polyamide 4.6 (PA46)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50SOSSB5-High-E-C-CC-PA46-GY
    Package Content 1000pcs.
    Package Content packed in bag
    Product Group 1-Piece Fixing Ties for Weld, moveable
    Releasable Closure (Yes/No) No
    Short Description 1-Piece Fixing Tie for Weld , moveable, PA66HS, 160x4.6 grey
    Tie Closure plastic pawl
    Type T50SOSSB5-High-E-C-CC
    Variant Outside Serrated
    Weight/Unit 0.003175kg
    Bundle ⌀ 1.0-35.0mm
    Bundle ⌀ max. 35.0mm
    Bundle ⌀ min. 1.0mm
    Length (L) 167.0mm
    Max Stud Length 14.2mm
    Stud ⌀ 5.0 mm, M6
    Width (W) 5.0mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026481661
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.05123m³
    Packaging 1 - Weight (kg) 3.218597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.475791kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 146.724kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
