21/02/2026

Fixing tie with pipe/tube holder, ⌀2.0-35.0mm, black, 250pcs.
Art.-No. 156-01177 | T50SVCIAHC1A-PA66HS/PA66HIRHS-BK

Copied
T50SVC5 rotates in any direction.

    Add to watchlist
    Downloads e-Learning
    Color Black (BK)

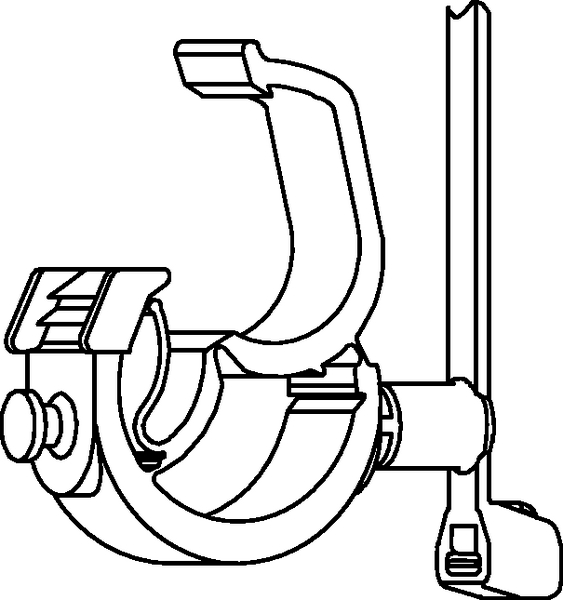

    Description HellermannTyton’s 2-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.
    Key product features lockable, rotatable
    Min. Tensile Strength (metric) 200N
    PART DESCRIPTION T50SVCIAHC1A-PA66HS/PA66HIRHS-BK
    Packaging Type bag
    Part No. 156-01177
    Product family 2-Piece Tie Assemblies
    Product family Products for wires and hoses, Products for parallel/multiple routing
    Type T50SVCIAHC1A
    Fixation Method Omega Clip
    Identification Plate Position none
    Max. Bundle Diameter (metric) 35.0mm
    Min. Bundle Diameter (metric) 2.0mm
    Material PA66HS, PA66HIRHS
    Material Polyamide 6.6 heat stabilized (PA66HS), Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
    ROHS compliant Yes
    Pkg. Qty. 250Pieces
    Pkg. Qty. 250
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
    Art.-No.: 156-01177 Contact
    Base Data Product Dimensions Material and Specifications Logistic and Packaging Downloads
