29/03/2024

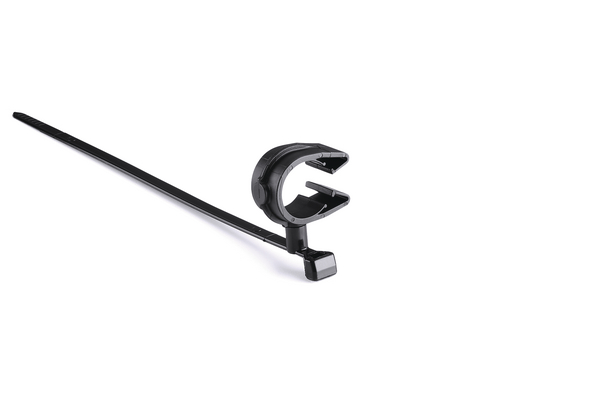

Fixing tie with pipe/tube holder, Ø14.0-18.3mm, black, 1000pcs.
Art.-No. 156-01667 | T50SVCMOC16M-PA66HIRHSUV-BK Details

Cable ∅ max 35.0mm
Cable ∅ min 2.0mm
Colour Black (BK)
Fixation Method Omega Clip
Identification Plate Position none
Key product features lockable, rotatable
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Pack Cont. 1000pcs.
Package Content packed in carton
PART DESCRIPTION T50SVCMOC16M-PA66HIRHSUV-BK
Product Group 2-piece fixing ties with pipe clip
Bundle Diameter max (metric) 18.3mm
Bundle Diameter Nom. (ND) 16.0 mm
Bundle ∅ 14.0-18.3mm
Bundle ∅ min. 14.0mm
Depth (D) 12.0mm
Height (H) 37.5mm
Length (L) 25.7mm
Length (L2) 19.3mm
Min.Tensile Strength 225N
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) Yes
Country of Origin MX
GTIN-13 / EAN 4031026574103
Packaging 1 - Weight (kg) 202.24kg
Packaging 3 - Type box
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121702
