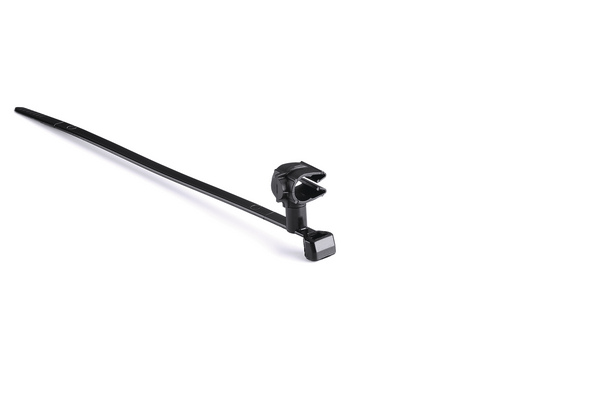

Fixing tie with pipe/tube holder, Ø6.0-8.0mm, black, 1000pcs.
Art.-No. 156-02241 | T50SVCMOC7M-PA66HIRHSUV-BK Details

Cable ∅ max 35.0mm
Cable ∅ min 2.0mm
Colour Black (BK)
Fixation Method Omega Clip
Identification Plate Position none
Key product features lockable, rotatable
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Pack Cont. 1000pcs.
Package Content packed in carton
PART DESCRIPTION T50SVCMOC7M-PA66HIRHSUV-BK
Product Group 2-piece fixing ties with pipe clip
Bundle Diameter max (metric) 8.0mm
Bundle Diameter Nom. (ND) 7.0 mm
Bundle ∅ 6.0-8.0mm
Bundle ∅ min. 6.0mm
Depth (D) 10.0mm
Height (H) 25.4mm
Length (L) 13.2mm
Length (L2) 14.0mm
Min.Tensile Strength 225N
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +110 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) Yes
Country of Origin MX
GTIN-13 / EAN 4031026717715
Packaging 1 - Weight (kg) 200.64kg
Packaging 3 - Height (m) 0.20954999999999998m
Packaging 3 - Length (m) 0.517525m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0344
Packaging 3 - Width (m) 0.3175m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121702
