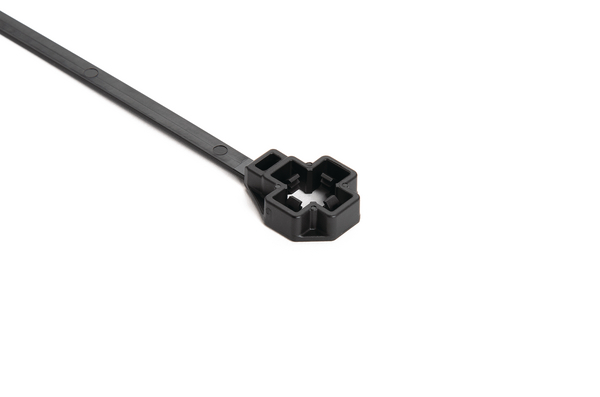

Fixing tie for stud, ⌀3.5-50.0mm, black, 100pcs.


Art.-No. 157-00419

| T80ROSLPSB10U-PA66HIRHSUV-BK

 |

Copied
Low-profile head allows mounts to stack, providing more mounting versatility from a single stud.
1033156
1032724
Low-profile head allows mounts to stack, providing more mounting versatility from a single stud.
1-Piece Fixing Ties for Weld Studs, cloverleaf design. From left to right: 1. Standoff, 2. standard, 3. low profile head with standoff, 4. low profile head design.
Low-profile head allows mounts to stack, providing more mounting versatility from a single stud.

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Package size
    Add to watchlist
    Downloads e-Learning
    Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    Colour Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 335N
    PART DESCRIPTION T80ROSLPSB10U-PA66HIRHSUV-BK
    Package Content 100pcs.
    Package Content packed in pack
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type T80ROSLPSB10U
    UV-Stabilised Yes
    Bundle ⌀ 3.5-50.0mm
    Bundle ⌀ max. 50.0mm
    Bundle ⌀ min. 3.5mm
    Height (H) 1.35mm
    Height (H2) 7.0mm
    Length (L) 215.0mm
    Stud ⌀ 10.0 mm
    Width (W) 20.8mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026717647
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.2921m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
