28/03/2024

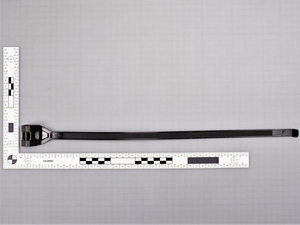

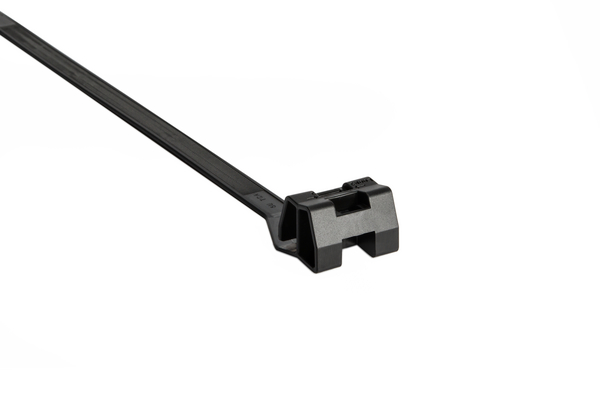

Cable tie outside serrated for direct fixation, 420.0x12.7mm, Ø114.0mm, black, 500pc.
Art.-No. 111-01672 | TAS120L-PA66HIRHSUV-BK Details

  • Halogen-free
  • Suitable for installation in public areas, road or railway tunnels
  • Built-in spacer for easy and quick installation
Application Designed as a catenary mounting tie it is simple to use. Typical applications are for suspending cables between buildings, supporting antenna cables or installation of railway signalling cables.Aerial Support Ties feature a built-in spacer to separate cables from the support wire and prevent abrasion. Formulated from a special nylon blend, these ties are specifically suited for long-term outdoor use. The bent tail allows for quick and simple installation by hand.
Application Tool MK9P, MK9P w/ Upper air, EVO9SP, EVO9HT
Colour Black (BK)
Fixation Method Others
Identification Plate Position none
Key product features for direct fixation
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Pack Cont. 500pc.

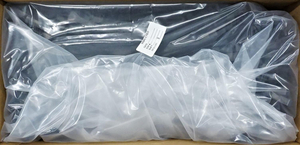

Package Content packed in bag
PART DESCRIPTION TAS120L-PA66HIRHSUV-BK
Product Family For parallel routing of pipes and harnesses
Product Group 1-piece fixing tie with built-in spacer
Releasable Closure (Yes/No) No
Short Description Cable Tie 420x12.7 mm, outside serrated for parallel routing, high impact modified, heat and UV stabilised, black
Tie Closure plastic pawl
Variant Outside Serrated
Bundle Diameter max (metric) 114.0mm
Bundle ∅ 114.0mm
Cable Tie Head Width (metric) 33.0mm
Height (H) 19.0mm
Length (L) 420.0mm
Min.Tensile Strength 535N
Strap Width max. (G) 1.3"
Thickness (T) 1.58mm
Weight/Unit 0.014538kg
Width (W) 12.7mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) Yes
Country of Origin US
Customs Number 39269097
GTIN-13 / EAN 4031026514581
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 7.388kg
Packaging 3 - Height (m) 0.3730625m
Packaging 3 - Length (m) 0.587375m
Packaging 3 - Qty 500

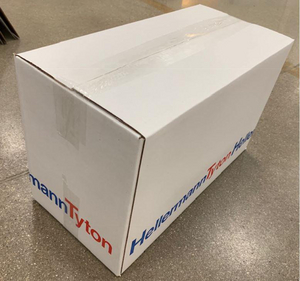

Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.063
Packaging 3 - Weight (kg) 8.208kg
Packaging 3 - Width (m) 0.2873375m
Packaging 4 - Height (m) 1.263m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 6000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.212
Packaging 4 - Weight (kg) 119.496kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
