05/10/2026

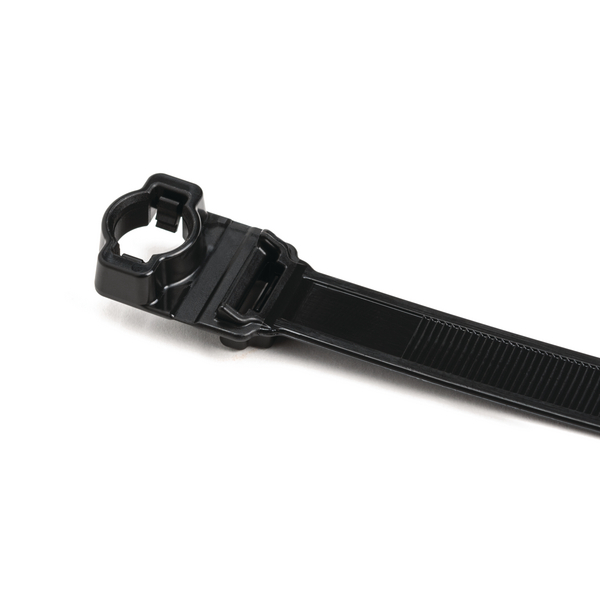

Fixing tie for stud, inside serrated, ⌀9.5-105.0mm, black, 300pcs.


Art.-No. 157-00286

| WSR10MM-PA66HIRHSUV-BK

 |

Copied
Wide strap cable tie with 10 mm stud mount.
957513
78212

    • One-piece fixing ties
    • High specification materials
    • Superior design
    • Suitable for complex applications
    Add to watchlist
    Downloads e-Learning
    Colour Black (BK)
    Fixation Method Stud Mount
    Identification Plate Position none
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 535N
    PART DESCRIPTION WSR10MM-PA66HIRHSUV-BK
    Package Content 300pcs.
    Package Content packed in pack
    Product Group 1-piece fixing ties for weld studs
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type WSR10MM
    Typical Application Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.
    UV-Stabilised Yes
    Variant Inside Serrated
    Bundle ⌀ 9.5-105.0mm
    Bundle ⌀ max. 105.0mm
    Bundle ⌀ min. 9.5mm
    Length (L) 398.8mm
    Stud ⌀ 10.0 mm
    Width (W) 12.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    Operating Temperature, 1000h +160 °C
    Operating Temperature, 5000h +125 °C
    Operating Temperature, 500h +165 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026575346
    Packaging 1 - Qty 300
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Weight (kg) 10.32kg
    Packaging 3 - Width (m) 0.3984625m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
