04/07/2025

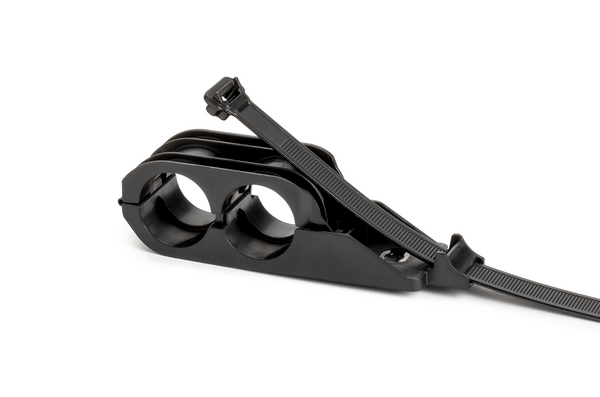

Fixing tie with pipe/tube holder, ⌀25.0mm, black, 250pcs.
Art.-No. 156-03194 | WSSDHVC24M6SD-PA66HIRHSUV-BK

Copied
Cable Tie Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Colour Black (BK)
Fixation Method Stud Mount
Foot Part Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Identification Plate Position none
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Min.Tensile Strength 535N
PART DESCRIPTION WSSDHVC24M6SD-PA66HIRHSUV-BK
Pack Cont. 250pcs.
Package Content packed in carton
Product Group 2-piece fixing ties with pipe clip
Type WSSDHVC24M6SD
UV-Stabilised Yes
⌀ max. 1. loop 25.0mm
⌀ max. 2. loops 25.0mm
Bundle ⌀ 25.0mm
Bundle ⌀ max. 25.0mm

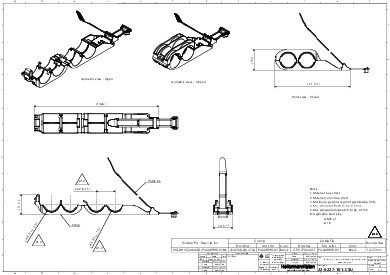

Height (H) 31.5mm
Length (L) 113.9mm
Length (L2) 188.0mm
Length (L3) 9.1mm
Width (W) 30.5mm
for Hole ⌀ (FH) M6 x 1
CE Certification No
CSA Certified No
Operating Temperature -40 °C to +105 °C
Operating Temperature Foot Part (Metric) -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
Country of Origin MX
GTIN-13 / EAN 4031026713489
Packaging 1 - Type bag
Packaging 3 - Height (m) 0.37465m
Packaging 3 - Length (m) 0.59055m
Packaging 3 - Qty 250
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0646
Packaging 3 - Weight (kg) 5.95kg
Packaging 3 - Width (m) 0.2921m
Packaging 4 - Qty 6000
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121702
