20/07/2025

Lacing tape, Flat, braided, 889N, -55 °C to +427 °C, natural, L=250m
Art.-No. 174-00254 | LTHT4C2NA-GF-NA |

Copied

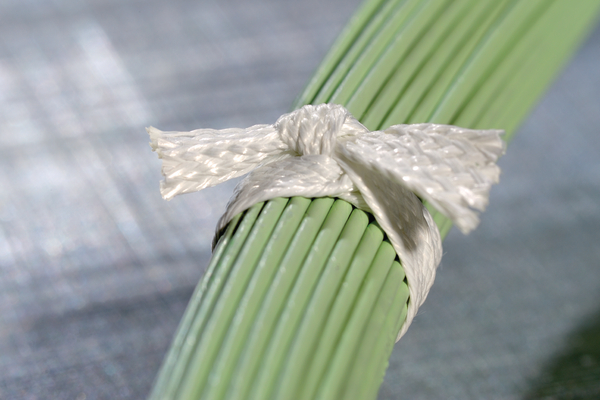

Lacing tape LTHT4C2NA.

    • High tensile strength
    • Synthetic rubber surface finishing provides very good knotting characteristics
    Add to watchlist
    Downloads
    Colour Natural (NA)
    Material Glass-fibre (GF)
    Min.Tensile Strength 889N
    PART DESCRIPTION LTHT4C2NA-GF-NA
    Package Content 250m
    Package Content packed in reel
    Product Family Lacing tape LTHT4C2NA
    Product Group Lacing tape made of glass fibre
    Type LTHT4C2NA
    Variant Endless
    Weight/Unit 0.001354kg
    Length (L) 250m
    Thickness (T) 0.4mm
    Thickness (T) 0.27-0.43mm
    Width (W) 3.17mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Lacing Shape Flat, braided
    Operating Temperature -55 °C to +427 °C
    ROHS compliant Yes
    Specifications
    Specifications A-A-52083, NSA8420
    Country of Origin FR
    Customs Number 70199000
    GTIN-13 / EAN 4031026558172
    Packaging 1 - Height (m) 0.1m
    Packaging 1 - Length (m) 0.065m
    Packaging 1 - Qty 250
    Packaging 1 - Type reel
    Packaging 1 - Volume (m³) 0.0004225m³
    Packaging 1 - Weight (kg) 0.3385kg
    Packaging 1 - Width (m) 0.065m
    Packaging 3 - Height (m) 0.133m
    Packaging 3 - Length (m) 0.33m
    Packaging 3 - Qty 11500
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0105m³
    Packaging 3 - Weight (kg) 15.821kg
    Packaging 3 - Width (m) 0.24m
    Packaging 4 - Height (m) 1.12m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 345000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.075m³
    Packaging 4 - Weight (kg) 495.63kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
