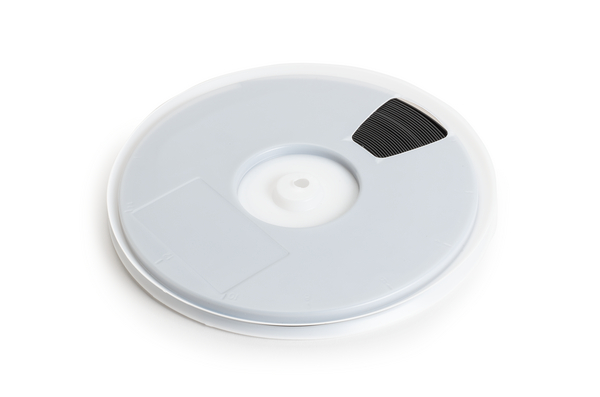

Cable tie endless, 304.8mx12.8mm, black, 1

Art.-No. 111-32119

| TELS-REEL-POM-BK

|

Continuous strap and separate heads allow for any bundle diameter, eliminating waste.

EL-TY straps can be cut to suit any bundle.

The 1-piece design of Aerial Support Ties reduces installation time.

Made of very strong Polyacetal (POM)

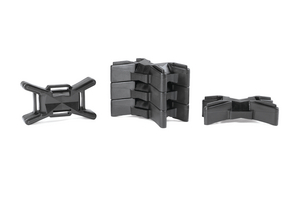

System consists of endless strap, spacers and heads
Head includes stainless steel pawls for a proper fixation
Very secure fixing and good resistance to ageing and UV light
Suits any bundle diameter and reduces inventory

Add to watchlist

Downloads e-Learning

More products in this product group:

Endless cable ties with separate head and spacer

Base Data

Application	These robust cable ties are particularly suitable for use with larger diameter cables, pipes and hoses. Designed originally for securing overhead catenary and cables, they are now used in many industries from the building sector, through to the chemical industry, to the installation of signs for traffic management. Separate spacers allow for a defined distance when bundling in parallel.
Colour	Black (BK)
Identification Plate Position	none
Material	Polyacetal (POM)
Min.Tensile Strength	1115N
PART DESCRIPTION	TELS-REEL-POM-BK
Package Content	1
Package Content packed in	pack
Product Family	EL-TY-Series
Product Group	Endless cable ties with separate head and spacer
Releasable Closure (Yes/No)	No
Tie Closure	copper alloy pawl
Type	TELS-REEL
UV-Stabilised	Yes
Variant	Endless

Product Dimensions


Length (L)	304.8m
Thickness (T)	1.50mm
Width (W)	12.8mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Operating Temperature	-40 °C to +85 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	US
GTIN-13 / EAN	4031026757094
Packaging 1 - Qty	1
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.0000889m
Packaging 3 - Length (m)	0.391m
Packaging 3 - Type	bag
Packaging 3 - Volume (m³)	0m³
Packaging 3 - Width (m)	0.3048m

More Information

ETIM 7.0 Key	EC000046
ETIM 8.0 Key	EC000046
ETIM 9.0 Key	EC000046
UNSPSC Key	39121703
