Connectors : Connector 1506

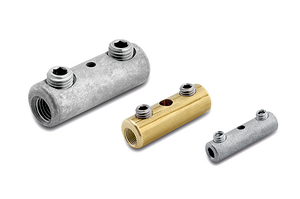

Mechanical connector, tin-plated, with blind hole for AI and CU conductors , Article number: 435-01507

Features

  • For connecting different conductor cross-sections
  • Suitable for aluminium and copper conductors
  • With blind hole for precise conductor insertion
  • Tin-plated connector body and hexagon socket screws

Certifications & Approvals

Application

Galvanised mechanical connector provided with a blind hole and suitable for stranded and solid aluminium and copper conductors in all kind of cable accessories. They also comply with DIN 4740 requirements for shrinking technology.

Colour Zinc-plated Metal (BV)
Pack Cont. 1
Package Quantity per pcs.
PART DESCRIPTION Connector 1506-ST-ML
Product Family Mechanical connector, tin-plated, with blind hole for AI and CU conductors
Product Group Connectors
Diameter (D) 7mm
Length (L) 25mm
Length (L3) 25mm
ELV compliant (Article 4 - 2) YES
Hazardous good No
Material Steel (ST)
Specifications
EAN / GTIN 4031026637679
Packaging 1 - Height (m) 0.025m
Packaging 1 - Length (m) 0.007m
Packaging 1 - Qty 1
Packaging 1 - Type pcs.
Packaging 1 - Volume (m³) 0
Packaging 1 - Weight (kg) 0.006kg
Packaging 1 - Width (m) 0.007m
Packaging 3 - Height (m) 0.27m
Packaging 3 - Length (m) 0.6m
Packaging 3 - Qty 1000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0648
Packaging 3 - Weight (kg) 9.3kg
Packaging 3 - Width (m) 0.4m
Weight 0.006kg
ETIM 6.0 EC001063
ETIM 7.0 Key EC001063
