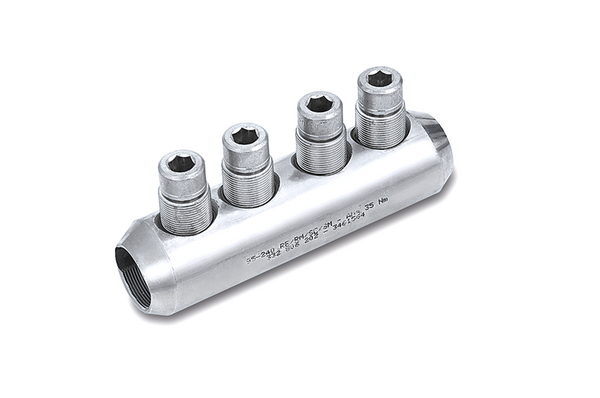

Mechanical connector, 95 - 240mm², ⌀35mm, L=128mm, metal
Art.-No. 435-01506 | Mechanical connector 9524-ST-ML |

Copied
Mechanical connectors with barrier.

    This product is not available anymore.
    • For connecting different conductor cross-sections
    • Suitable for aluminium and copper conductors
    • Tin-plated connector body with barrier and shear-off bolts
    Add to watchlist
    Downloads
    Application Galvanised mechanical connector provided with barrier and shear-off bolts. Suitable for stranded and solid aluminium and copper conductors in all kind of cable accessories. They also comply with DIN 4740 requirements for shrinking technology.
    Colour Zinc-plated Metal (BV)
    Material Steel (ST)
    PART DESCRIPTION Mechanical connector 9524-ST-ML
    Package Content 1pc.
    Package Content packed in pcs.
    Product Family Mechanical connector, tin-plated, with barrier and shear-off bolts for AI and CU conductors
    Product Group Connectors
    Short Description Mechanical connector 9524 ST ML
    Type Mechanical connector 9524
    Weight/Unit 0.34kg
    Conductor Size Range mm² 95 - 240mm²
    Diameter (D) 35mm
    Length (L) 128mm
    Nut Size (NS) 8mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Voltage Range up to 15kV
    Country of Origin DE
    Customs Number 85369010
    GTIN-13 / EAN 4250596412770
    Packaging 1 - Height (m) 0.055m
    Packaging 1 - Length (m) 0.125m
    Packaging 1 - Qty 1
    Packaging 1 - Type pack
    Packaging 1 - Volume (m³) 0.000240625m³
    Packaging 1 - Weight (kg) 0.34kg
    Packaging 1 - Width (m) 0.035m
    ETIM 7.0 Key EC001063
    ETIM 8.0 Key EC001063
    ETIM 9.0 Key EC001063
