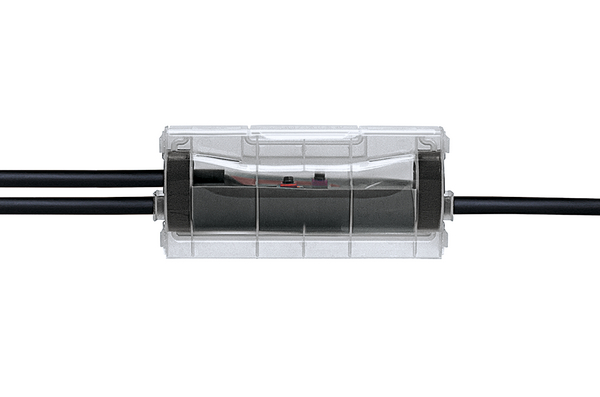

Cast resin joint, Parallel P, 4 x 1.5mm² to 5 x 10mm², L=230mm, 490 ml, Polyurethane resin (PUR) black
Art.-No. 435-00186
| PA-11 / SF-PUR-BK
|
Copied
- One-piece, impact-proof, transparent moulding shell
Captive lids
Compact, optimized dimensions
Longitudinally and transversely watertight
Joint can be cast under influence of water
Immediately ready for use

More products in this product group:
Application |
The parallel branch joint PA is a universal straight-through and branch joint. Depending on the connector, it can be used for single and double branches. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR and utility cables. Application: In low-voltage electrical networks as well as for signal and communication cables. For power supply lines for outdoor lighting and for cable repairs. In general connections in industrial buildings, power supply underground, outdoors and under water. |
Colour | Black (BK) |
Content |
Cast resin PUR 771 In a two-chamber pouch Transparent, one-piece moulding shell Foam seal, protective gloves, emery cloth Cleaning cloth, installation instructions SF-nozzle (two-chamber pouch) |
Material | Polyurethane resin (PUR) |
No. of Wires | 4 |
PART DESCRIPTION | PA-11 / SF-PUR-BK |
Package Content | 1Set |
Package Content packed in | set |
Product Family | RELICON PA-11 with PUR 771 |
Product Group | Parallel cable branch joints |
Short Description | Parallel branch joint PA-11 58/230 |
Type | PA-11 / SF |
Variant | Cast resin |
Weight/Unit | 1.048kg |
Country of Origin | PL |
Customs Number | 39095090 |
GTIN-13 / EAN | 4031026631356 |
Packaging 3 - Height (m) | 0.1m |
Packaging 3 - Length (m) | 0.31m |
Packaging 3 - Qty | 1 |
Packaging 3 - Type | carton |
Packaging 3 - Volume (m³) | 0.0071m³ |
Packaging 3 - Weight (kg) | 1.548kg |
Packaging 3 - Width (m) | 0.23m |
Packaging 4 - Height (m) | 0.945m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 96 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 0.907m³ |
Packaging 4 - Weight (kg) | 169.608kg |
Packaging 4 - Width (m) | 0.8m |
Storage Temperature | +4 °C to +40 °C |
