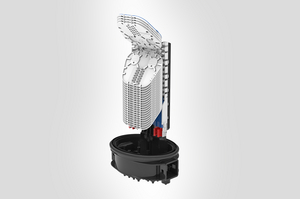

CFNIRS 19 Port M Length Closure with 12 Compact SE-IR 3A Trays
Art.-No. 857-02143
| CFNIRS-MXBDWX
Copied
- Maximum 288 fibre splice capacity
- 18 round ports and 1 oval port
- Foam Entry Block
- Positive fibre management to ensure consistent 15mm bend radius throughout
- Fibre storage basket for loop through applications
- Bi-directional fibre routing
- Supplied with 12 SE-IR 3A Splice Trays
- Maximum 24 splices per tray (double stacked)
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional pressure release valve
More products in this product group:
| Color | Black (BK) |
| Content |
CFN 19 Port Base M Length Cover Quick Release Clamp Sealing 'O' Ring Fibre Optic Routing Module Fibre Optic Storage Unit with Foam Entry Block Fibre Optic Storage Unit Lid 12 x SE-IR 3A Compact Splice Trays Tray Lid Anchor Fixing Kit (2) Fibre Pricker Hook and Loop Management Ties Installation Guide |
| PART DESCRIPTION | CFNIRS-MXBDWX |
| Packaging Type | box |
| Part No. | 857-02143 |
| Port Type | LM, B, D |
| Splice Capacity | 288 |
| Technical Description |
The CFN 19 Port Integrated Routing (IR) M length closure is supplied with a foam entry block, a loop storage basket, IR Fibre Management system and splice trays. The base configuration of 18 round ports and 1 oval port covers a cable diameter range of 4.0 – 16.5mm when using Cablelok mechanical seals. The mounting system is manufactured from glass filled nylon and is supplied with 12 SE-IR CFN 3A splice trays. The position of the mounting system allows easy access for the routing of fibre on to the trays and the basket provides storage space for the storage of fibre loops. The trays and fibre routing module are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. The fibre entry block has dedicated PLC splitter accommodation for a maximum of 2 x 250µm bare end PLC splitters and fibre management for fibre direction changes and storage of excess fibre. Fibre retention guides manage the fibre elements into the IR system. All IR system cover parts are coloured blue identifying them as removable parts allowing access to the fibre. The CFN IR single element trays is manufactured from ABS and is fitted with 2 x 3A splice protector inserts which are positioned at the front of the tray providing a maximum splice capacity of 24 double stacked 3A (heatshrink) splice protectors upto 60mm long. |
| Type | CFNIRS-MXBDWX |
| Closure Length (metric) | 410mm |
| Closure Width (imperial) | 9.85" |
| Closure Width (metric) | 250mm |
| Closure Width 2 (imperial) | 7.09" |
| Closure Width 2 (metric) | 180mm |
| Length (metric) | 410mm |
| Max. Cable Diameter (imperial) | 0.65" |
| Max. Cable Diameter (metric) | 16.5mm |
| Max. Cable Size (imperial) | 0.65 |
| Max. Cable Size (metric) | 16.5 mm |
| Miin. Cable Diameter (imperial) | 0.09" |
| Min. Cable Diameter (metric) | 4.0mm |
| Min. Cable Size (imperial) | 0.09 |
| Min. Cable Size (metric) | 4.0 mm |
| Port Count | 1, 2, 16 |
PO-KIT-33041
857-40928
MB-CFN-PWB-001
857-40925
MB-CFN-MOBRA-BRKT
857-40926
