20/11/2025

Bundling clip for hole (oval), black, 1000pcs.
Art.-No. 151-04379 | ATSDBCFT62X122-PA66HIRHS-BK |

Copied

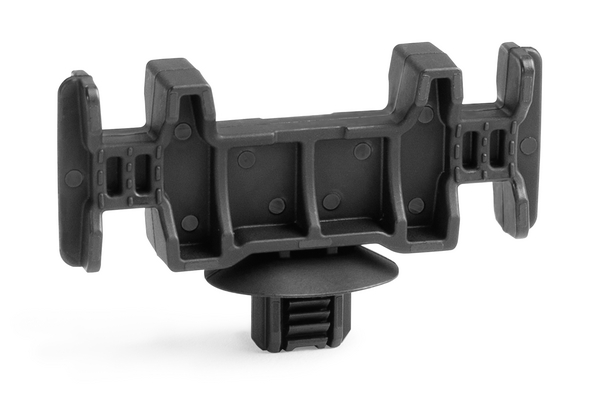

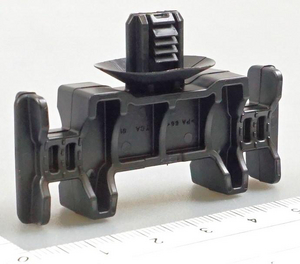

ATSDBCFT62x122.
Our ATSDBCFT62x122 is specially made for the automatisation of HV harnesses.

    • Effortless, tool-free installation – can be mounted easily by hand without the need for tools
    • Flexible attachment options – compatible with both cable ties and adhesive tape
    • Oval base geometry – ensures defined cable routing and provides reliable anti-twist protection for secure positioning
    Add to watchlist
    Downloads

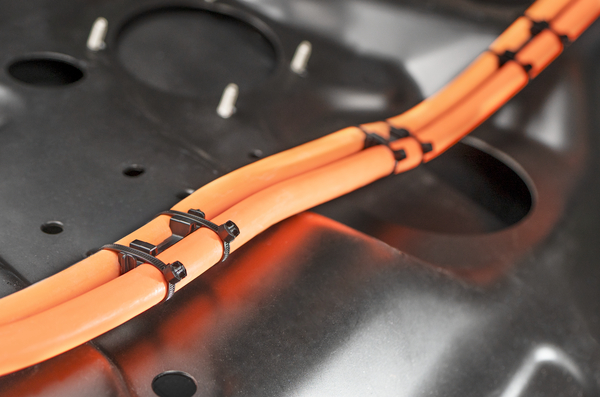

    Application The ATSDBCFT62x122, in combination with our ATS -Flex (Autotool System), forms an ideal solution for the automated assembly of high-voltage wire harnesses – ensuring precision, speed, and consistency in demanding production environments.
    Cable ⌀ max 18.0mm
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Key product features products for automatic tools, for multiple routing, for faster processing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION ATSDBCFT62X122-PA66HIRHS-BK

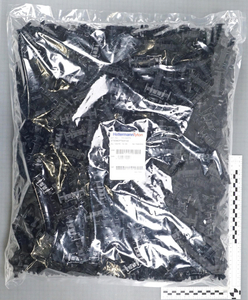

    Package Content 1000pcs.
    Package Content packed in box
    Product Family for oval holes
    Product Group Bundling clips with fir tree
    Short Description Our ATSDBCFT62x122 is specially made for the automatisation of HV harnesses.
    Type ATSDBCFT62X122
    Weight/Unit 0.004547kg
    Bundle ⌀ 18.0mm
    Bundle ⌀ max. 18.0mm
    Fixing Hole Shape Oval

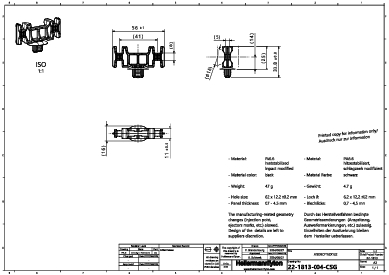

    Height (H) 25.0mm
    Height (H2) 33.8mm
    Length (L) 56.0mm
    Length (L2) 41.0mm
    Panel Thickness 0.7 - 4.5mm
    Width (W) 11.0mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.7 - 4.5 mm
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026756257
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.645m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0319275m³
    Packaging 1 - Weight (kg) 4.61488kg
    Packaging 1 - Width (m) 0.55m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 3000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 14.66464kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 36000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 196.98kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
