Bundling clip for hole (round), L=77.8mm, black, 2000pcs.
Art.-No. 151-02065 | BC with tube-Oval-PA66HIRHS-BK

Bundling clips provide a simple and efficient solution for organizing and managing various types of lines, improving safety and reducing clutter.
They are fastened onto the using the bundle or cable ties to enable quick and secure installation, saving time during assembly and maintenance.
Multiple fastening orientations offer flexibility to accommodate a wide range of panel thicknesses and hole diameters, making it suitable for diverse applications.

More products in this product group:

Application	Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
Color	Black (BK)
Description	Bundling clips are designed to offer a simple and efficient way to secure cable bundles, hoses, or pipes. They are typically fastened onto a tape bar using bundle or cable ties, allowing for quick and reliable installation. Thanks to their various fixing orientations, these clips can accommodate a wide range of panel thicknesses and hole diameters, making them versatile for different applications. In addition to standard bundling clips, there are also standoff and stud mount versions available to suit more specific mounting needs.

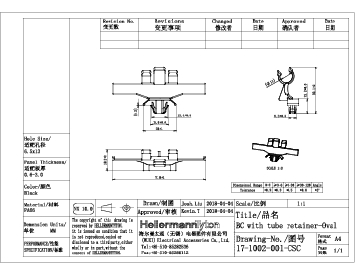

PART DESCRIPTION	BC with tube-Oval-PA66HIRHS-BK
Packaging Type	carton
Part No.	151-02065
Product family	Bundling Clips
Short Desc.	Bundling Clip with Oval Arrowhead and Tube Retainer, 11 mm Long, 0.7 - 3.0 mm Panel Thickness, PA66HIRHS, 2000/ctn
Type	BC with tube-Oval
UV Resistant	Yes

Fixation Method	Bundling Clip
Height (imperial)	1.54"
Height (metric)	39.1mm
Length (imperial)	3.06"
Length (metric)	77.8mm
Max. Mounting Hole Diameter (imperial)	0.51"
Max. Panel Thickness (imperial)	0.12"
Max. Panel Thickness (metric)	3.0mm
Min. Panel Thickness (imperial)	0.03"
Min. Panel Thickness (metric)	0.7mm
Mounting Hole Diameter (imperial)	0.26 - 0.51 "
Mounting Hole Diameter (metric)	6.5 x 13.0 mm
Mounting Hole Shape	Oval
Panel Thickness (imperial)	0.03 - 0.12"
Panel Thickness (metric)	0.7 - 3.0mm
Tape Bar Length (imperial)	3.06"
Tape Bar Length (metric)	77.8mm
Width (imperial)	0.72"
Width (metric)	18.2mm

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen Free	Yes
Material	PA66HIRHS
Material	Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Material Head	Polyamide 6.6, high impact modified, heat stabilized (PA66HIRHS)
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No
