01/10/2026

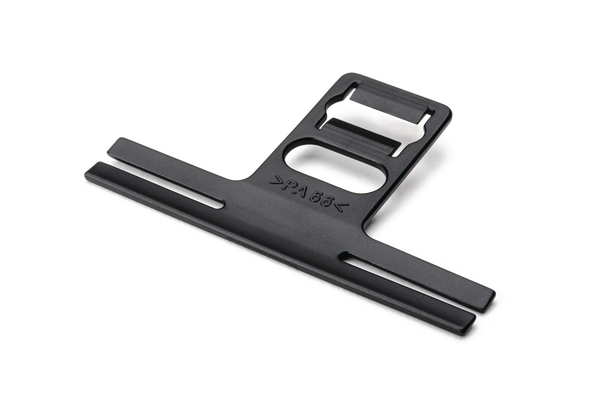

Bundling clip for stud, L=55.0mm, SO=22.8mm, black, 1000pcs.


Art.-No. 151-00017

| BC2212-PA66HIRHS-BK

 |

Copied
The slim line BC series is particularly compact and flexible.
31299
31693

    • Very flat bundling clip for 5.0 mm weld stud
    • Horizontal length tolerance compensation
    • Suitable for cables of reduced weight and diameter
    Add to watchlist
    Downloads CAD-Download
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BC2212-PA66HIRHS-BK
    Package Content 1000pcs.
    Package Content packed in pack
    Product Family for distance routing
    Product Group Bundling clips for weld studs, lateral adjustment
    Short Description Bundling Clip, stud size 5 mm, high impact modified, heat stabilised, black
    Type BC2212
    Typical Application The BC series is proving very popular in the automotive industry as a means of installing cable sets easily in various areas of the vehicle. Their low-profile design helps enable installation where space is limited.
    UV-Stabilised No
    Weight/Unit 0.00092kg
    Wings on clip base (Yes / No) NO
    ⌀ D 0.2"
    Bundling Bar Length 2.17"
    Bundling Bar Length 55.0mm
    Height (H) 1.5mm
    Length (L) 55.0mm
    Length (L2) 22.0mm
    Max Stud Length 0.9"
    Max Stud Length 22.8mm
    Offset Length 22.8mm
    Stud ⌀ 0.20"
    Stud ⌀ 5.0 mm
    Width (W) 34.0mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) Yes
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026250229
    Packaging 1 - Height (m) 0.045m
    Packaging 1 - Length (m) 0.38m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.004446m³
    Packaging 1 - Weight (kg) 0.941815kg
    Packaging 1 - Width (m) 0.26m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.28895kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 145.492kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
