Bundling clip for hole (round), L=50.0mm, SO=31.8mm, natural/grey, 1000pcs.
Art.-No. 156-02962
| BC28OSSRAH1.4T-POM/TPE-GY/NA
Copied
- Connector clip design meets USCAR EWCAP-005-11 clip slot specifications, assuring compliance.
- Integrated dual seal meets IP65 for protection against water, dust, chemicals, air and sound.
- Sealed arrowhead meets USCAR44 push in, pull off and sealing standards.

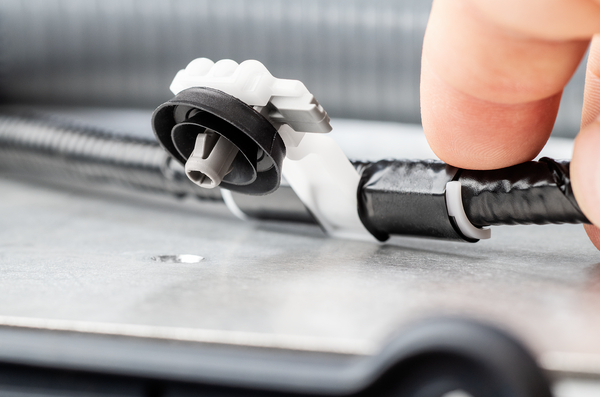

| Application | Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions. |
| Color | Natural (NA), Gray (GY) |

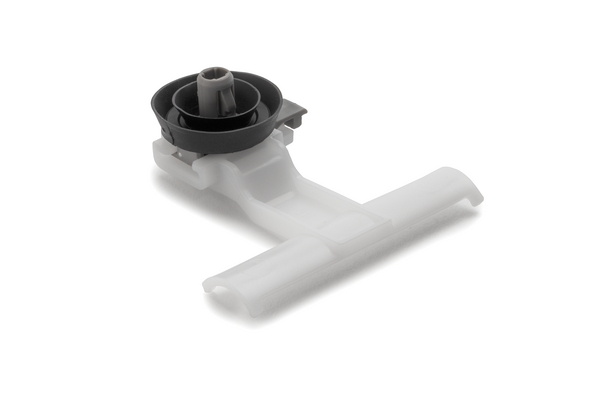

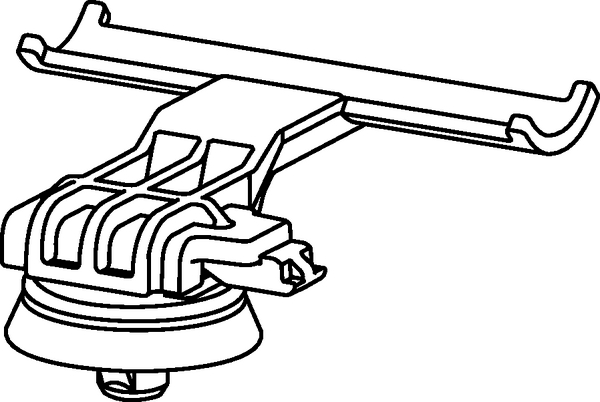

| Description | Offset tape clip with round arrowhead mount and seal is ideal for ingress applications. The arrowhead stays firmly locked into place when fully inserted into the hole. |
| PART DESCRIPTION | BC28OSSRAH1.4T-POM/TPE-GY/NA |
| Packaging Type | box |
| Part No. | 156-02962 |
| Product family | Bundling Clips |
| Product family | Bundling Clips, Sealed products, Connector Accessory |
| Short Desc. | Tape Clip with Arrowhead Mount and 11 mm Connector Clip Slot, POM/TPE, Natural/Gray, 1000/carton |
| Type | BC28OSSRAH1.4T |
| UV Resistant | Yes |
| Disc Diameter (imperial) | 0.88" |
| Disc Diameter (metric) | 22.3mm |
| Height (imperial) | 0.59" |
| Height (metric) | 15.1mm |
| Length (imperial) | 1.97" |
| Length (metric) | 50.0mm |
| Max. Bundle Diameter (imperial) | 0" |
| Max. Hole Depth (imperial) | 0.07" |
| Max. Hole Depth (metric) | 1.8mm |
| Max. Mounting Hole Diameter (imperial) | 0.27" |
| Max. Panel Thickness (imperial) | 0.07" |
| Max. Panel Thickness (metric) | 1.8mm |
| Min. Bundle Diameter (imperial) | 0" |
| Min. Hole Depth (imperial) | 0.05" |
| Min. Hole Depth (metric) | 1.2mm |
| Min. Mounting Hole Diameter (imperial) | 0.24" |
| Min. Panel Thickness (imperial) | 0.05" |
| Min. Panel Thickness (metric) | 1.2mm |
| Mounting Hole Diameter (imperial) | 0.24 - 0.27 " |
| Mounting Hole Diameter (metric) | 6.1 - 6.9 mm |
| Mounting Hole Shape | Round |
| Offset Length (imperial) | 1.25" |
| Offset Length (metric) | 31.8mm |
| Panel Thickness (imperial) | 0.05 - 0.07" |
| Panel Thickness (metric) | 1.2 - 1.8mm |
| Slot Size (W2) | 11.0mm |
| Tape Bar Length (imperial) | 1.97" |
| Tape Bar Length (metric) | 50.0mm |
| Width (imperial) | 1.96" |
| Width (metric) | 49.8mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Material | POM, TPE |
| Material | Polyacetal (POM), Thermoplastic Elastomer (TPE) |
| Operating Temperature | -40°F to +194°F (-40°C to +90°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
