30/06/2025

Bundling clip for hole (oval), L=40.2mm, black, 5000pcs.
Art.-No. 151-03887 | BC40DOP63x100-PA66HIRHS-BK |

Copied

    • Effortless, tool-free installation – can be mounted easily by hand without the need for tools
    • Flexible attachment options – compatible with both cable ties and adhesive tape
    • Oval base geometry – ensures defined cable routing and provides reliable anti-twist protection for secure positioning
    Add to watchlist
    Downloads
    Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BC40DOP63x100-PA66HIRHS-BK
    Pack Cont. 5000pcs.
    Product Family for oval holes
    Product Group Bundling clips with fir tree
    Type BC40DOP63x100

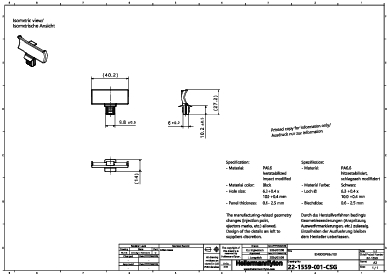

    Bundling Bar Length 40.2mm
    Fixing Hole Shape Oval
    Height (H) 27.2mm
    Height (H2) 10.2mm
    Length (L) 40.2mm
    Panel Thickness max. 0.6 - 2.5mm
    Weight/Unit 0.002144kg
    Width (W) 14.0mm
    for Hole ⌀ (FH) 6.3 x 10.0 mm
    for Panel Thickness min - max 0.6 - 2.5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026706443
    Packaging 1 - Qty 5000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 10.785411kg
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 11.747411kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.204m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 100000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.156m³
    Packaging 4 - Weight (kg) 255.94kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
