Bundling clip for hole (oval), L=60.0mm, SO=16.0mm, black, 500pcs.
Art.-No. 156-02784 | BC60FTOVAL16SO-PA66HIRHS-BK |

Copied
Bundling clip with fir tree for oval holes and with offset.

    • Winding bar for defined cable routing
    • Lateral stoppers prevent the the cable ties from slipping down
    • Oval FT design for a wide range of hole hole sizes
    • Oval foot section serves as anti-twist protection
    Add to watchlist
    Downloads
    Application The cable is guided at a defined distance from the surface. The oval design of the foot section prevents twisting and guides the cable in the defined direction. the defined direction.
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BC60FTOVAL16SO-PA66HIRHS-BK
    Package Content 500pcs.
    Package Content packed in bag
    Product Family for oval holes
    Product Group Bundling clips with fir tree
    Type BC60FTOVAL16SO
    Weight/Unit 0.002434kg

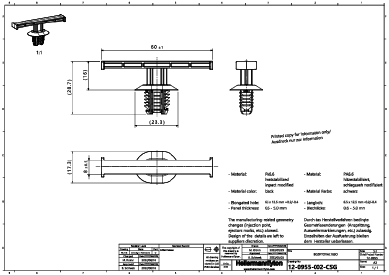

    ⌀ (D2) 17.3mm
    Bundling Bar Length 60.0mm
    Diameter (D) 23.3mm
    Disc ⌀ 23.3 x 17.3mm
    Fixing Hole Shape Oval
    Height (H) 28.7mm
    Height (H2) 16.0mm
    Length (L) 60.0mm
    Length (L2) 23.3mm
    Offset Length 16.0mm
    Panel Thickness max. 0.6 - 5.0mm
    Width (W) 17.3mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.3 x 12.2 mm, 6.3 x 12.3 mm, 6.3 x 12.7 mm, 6.5 x 12.2 mm, 6.6 x 12.5mm
    for Panel Thickness min - max 0.6 - 5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026631097
    Packaging 1 - Height (m) 0.065m
    Packaging 1 - Length (m) 0.39m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.008619m³
    Packaging 1 - Weight (kg) 1.246135kg
    Packaging 1 - Width (m) 0.34m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 5.58454kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 155.016kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
