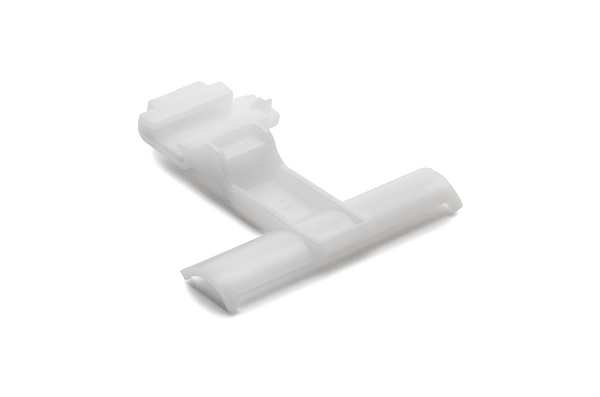

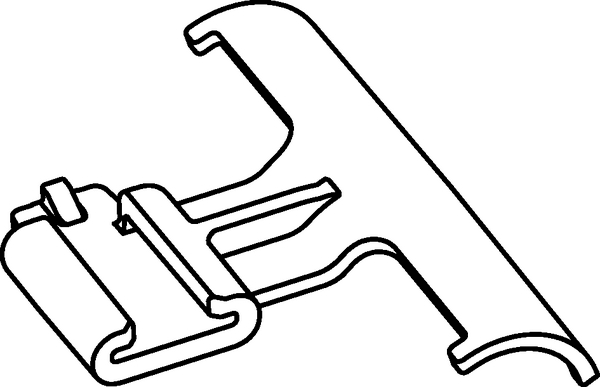

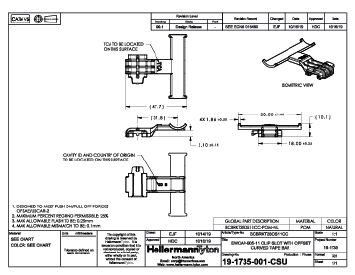

Connector clip for connector, natural, 2000pcs.
Art.-No. 151-03150 | BCBRKT28OS11CC-POM-NA |

Copied

    • Easy to install by simply pushing into place
    • Connection can be released (non-destructive)
    • One fit tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dust and dirt gaining access
    Add to watchlist
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Natural (NA)
    Material Polyacetal (POM)
    PART DESCRIPTION BCBRKT28OS11CC-POM-NA
    Package Content 2000pcs.
    Package Content packed in box
    Type BCBRKT28OS11CC
    Type of connection USCAR11
    UV-Stabilised No
    Bundling Bar Length 1.97"
    Bundling Bar Length 50.0mm
    Height (H) 10.1mm
    Length (L) 50.0mm
    Offset Length 31.8mm
    Width (W) 47.7mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026635095
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
