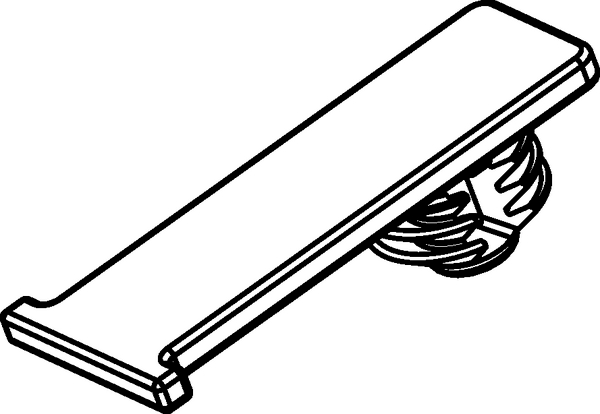

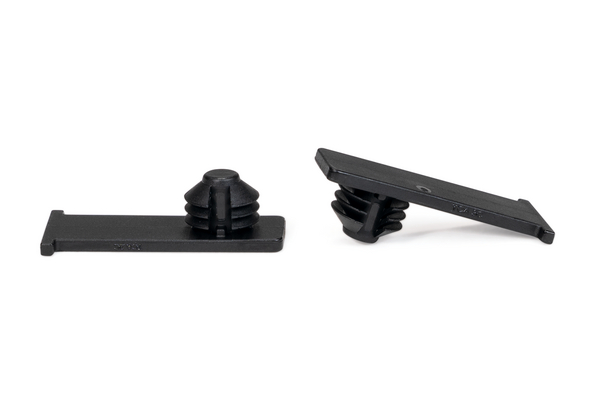

Bundling clip for hole (round), L=25.0mm, black, 16000pcs.
Art.-No. 151-02462 | BCHFT6-S-PA66HIRHS-BK

Copied
Application Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION BCHFT6-S-PA66HIRHS-BK
Pack Cont. 16000pcs.
Package Content packed in carton
Type BCHFT6-S
Bundling Bar Length 25.0mm
Height (H) 7.4mm
Length (L) 25.1mm
Panel Thickness max. 0.7-1.5mm
Weight/Unit 0.000415kg
Width (W) 8.0mm
for Hole ⌀ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.7 - 1.5 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
Country of Origin CN
Customs Number 39269097
GTIN-13 / EAN 4031026609966
Packaging 1 - Height (m) 0.14m
Packaging 1 - Length (m) 0.58m
Packaging 1 - Qty 16000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0406
Packaging 1 - Weight (kg) 6.640001kg
Packaging 1 - Width (m) 0.5m
Packaging 3 - Height (m) 0.212m
Packaging 3 - Length (m) 0.565m
Packaging 3 - Qty 16000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0467
Packaging 3 - Weight (kg) 7.140001kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.204m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 320000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.156
Packaging 4 - Weight (kg) 163.8kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
