31/10/2025

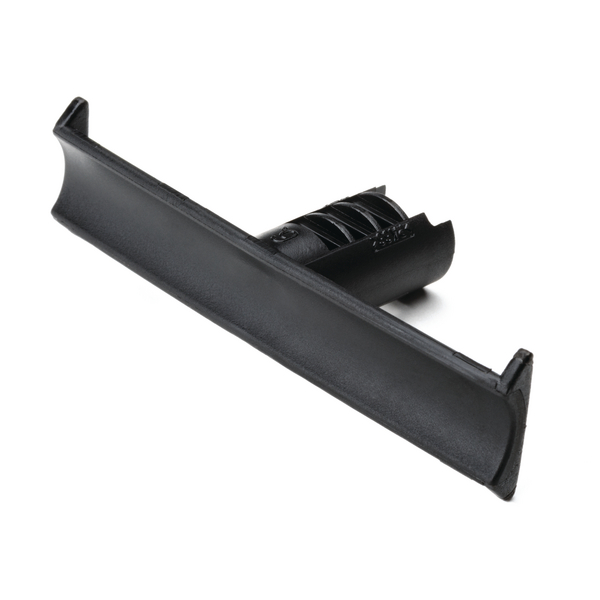

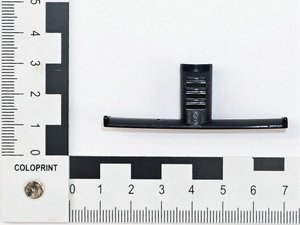

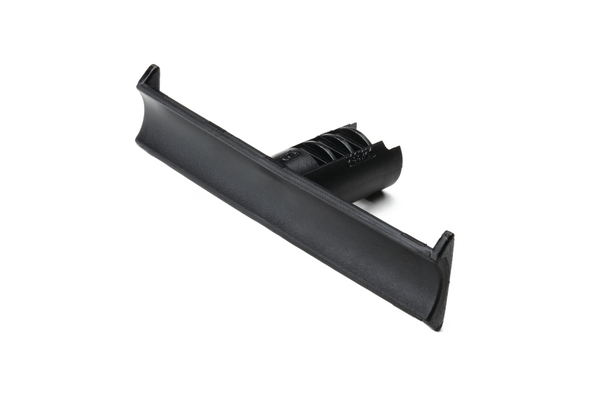

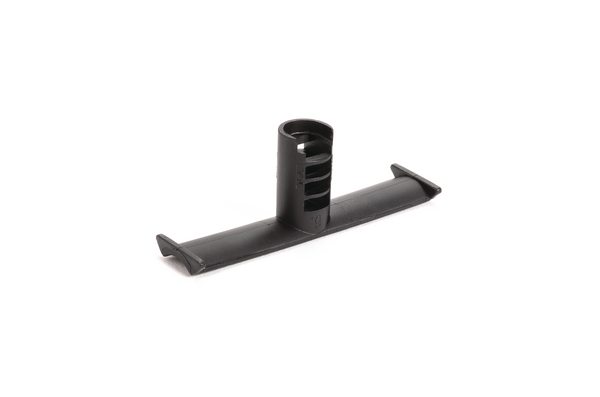

Bundling clip for stud, L=59.0mm, black, 6000pcs.
Art.-No. 151-01866 | BCOS6-PA66HIRHS-BK |

Copied
Bundling clips offer an easy securing option when cable ties can't be used.
Bundling clips offer an easy securing option when cable ties can't be used.
Bundling clips offer an easy securing option when cable ties can't be used.

    • Simple installation, tool-free
    • Is attached to the bundle element with cable ties or adhesive tape
    • The oval base geometry serves as anti-twist protection and for defined cable routing
    Add to watchlist
    Downloads
    Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
    Colour Black (BK)
    Fixation Method Weld Stud Fixing
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION BCOS6-PA66HIRHS-BK

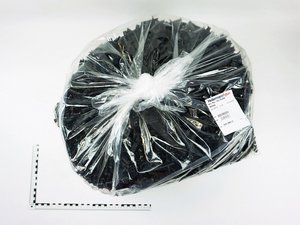

    Package Content 6000pcs.
    Package Content packed in bag
    Product Group Bundling Clips for Weld Studs
    Short Description Bundling clip for weld studs (6 mm) high impact modified, heat stabilised, black
    Type BCOS6
    Weight/Unit 0.001964kg
    Bundling Bar Length 59.0mm
    Length (L) 59.0mm
    Max Stud Length 0.61"
    Max Stud Length 15.5mm
    Stud ⌀ 0.24"
    Stud ⌀ 6.0 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026576466
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 6000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 11.849411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 12.669411kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 72000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 173.028kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 26121630
