10/09/2025

BHM8CC17-POM/SpS-BK
Art.-No. 151-03664 | BHM8CC17-POM/SpS-BK |

Copied

    • Easy to install by simply pushing into place
    • Connection can be released (non-destructive)
    • One fit tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dust and dirt gaining access
    Add to watchlist
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Material Polyacetal (POM), Spring Steel (SpS)
    PART DESCRIPTION BHM8CC17-POM/SpS-BK
    Package Content 2500pcs.
    Package Content packed in box
    Type BHM8CC17
    UV-Stabilised No

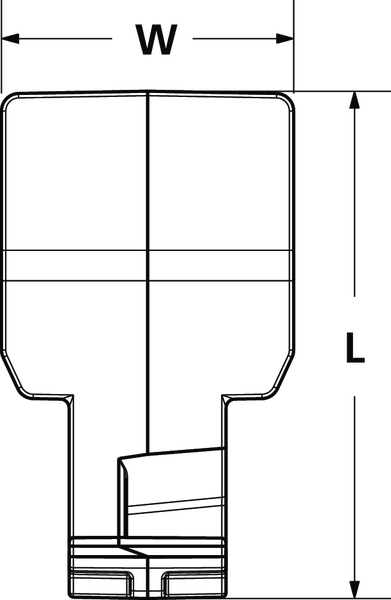

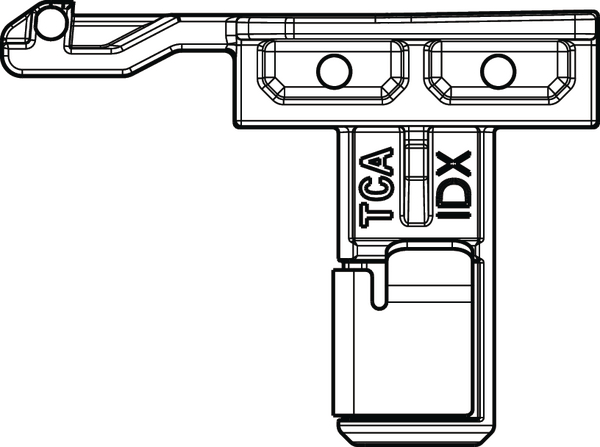

    Height (H) 21.7mm
    Height (H2) 15.5mm
    Hole Depth 14.0mm
    Length (L) 29.1mm
    Length (L2) 7.6mm
    Width (W) 16.75mm
    Width (W2) 9.3mm
    for Hole ⌀ (FH) 7.6 - 8.4 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026754741
    Packaging 1 - Qty 2500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 4.19kg
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
