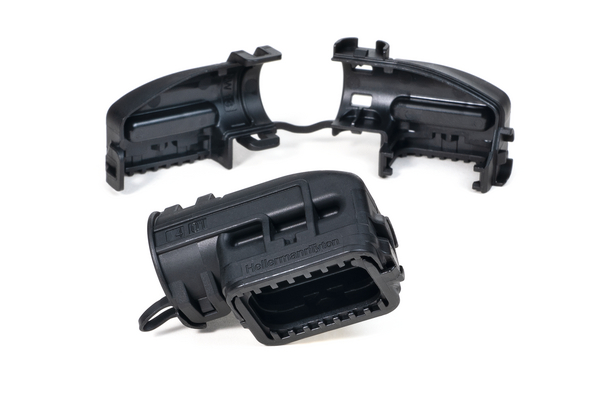

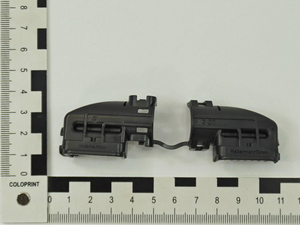

Backshell, 90°, nom⌀13.0mm, black, 800pcs.
Art.-No. 151-02768
| BSC90NW13-PA66/PA6FR-BK
|
Copied
- Strain relief for corrugated tubes
- Four shrouded locks
- Strapping points fully integrated with cover for maximum retention of harness
- Nominal diameter printed in backshell
- Insertion support and pre-catch function audible by clicking simplify the closing, laying of the cables and saves time
- Corrugated tube is completely enclosed by backshell, so that tube is not bruised in case of using an additional cable tie and cannot slip out of place especially during movement and vibration
- Available in V0-material (flame retardent) especially for vehicles used for transportation of passengers
Show more
Show less
More products in this product group:
| Application | The backshells or covers protecting the individual cables and wires from splashing water and dirt. |
| Colour | Black (BK) |
| Key product features | for convoluted tubes or with rib |
| Material | Polyamide 6.6 (PA66), Polyamide 6, flame retardant (PA6FR) |
| PART DESCRIPTION | BSC90NW13-PA66/PA6FR-BK |

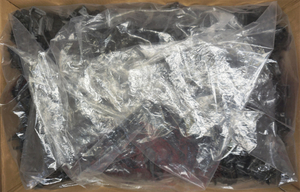

| Package Content | 800pcs. |
| Package Content packed in | bag |
| Product Family |
Backshell C, 90° elbow, NW 13 CTCS-series |
| Product Group |
Connector Accessory Backshells, Group C |
| Short Description | backshells or covers protecting 90°, nom⌀13mm |
| Type | BSC90NW13 |
| Weight/Unit | 0.00738kg |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026617770 |
| Packaging 1 - Height (m) | 0.8m |
| Packaging 1 - Length (m) | 0.6m |
| Packaging 1 - Qty | 800 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.192m³ |
| Packaging 1 - Weight (kg) | 5.969411kg |
| Packaging 1 - Width (m) | 0.4m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 800 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 6.935411kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.204m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 16000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.156m³ |
| Packaging 4 - Weight (kg) | 160.7kg |
| Packaging 4 - Width (m) | 0.8m |
