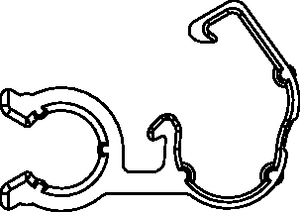

Cable clip, Dmax=6.0mm
Art.-No. 151-14202 | Cable Clip-PA46-GY

Copied
Bracket KBLS for parallel cable routing.

    • Easy to install without the need for a tool.
    • 6mm entry opens and closes by clicking into the required position.
    • Suitable for post-installation of bundles.
    Add to watchlist
    Downloads
    Color Gray (GY)
    Description In this application, a clip is used for fastening instead of a cable tie. Users benefit as they can feel the clip snap into place and only need to use one hand for mounting. The clip is able to accommodate cable bundles measuring up to 8 mm in diameter. As the clip can be mounted very easily simply by clicking onto the tube or cable, adding cables to existing cable looms post-installation is no problem at all.
    PART DESCRIPTION Cable Clip-PA46-GY
    Packaging Type pcs.
    Part No. 151-14202
    Product family Omega Clips
    Product family Products for parallel/multiple routing, Products for wires and hoses
    Type Cable Clip
    Fixation Method Omega Clip
    Height (metric) 8.15mm
    Length (metric) 18.9mm
    Max. Bundle Diameter (metric) 6.0mm
    Nominal Diameter (metric) 5.14mm
    Width (metric) 12.0mm
    Material PA46
    Material Polyamide 4.6 (PA46)
    REACH Conformity Yes
    ROHS compliant Yes
    Packaging 1 - Weight (kg) 0.919kg
    Pkg. Qty. 1000
    Pkg. Qty. 1000Pieces
