31/08/2025

Connector clip for hole (round), black, 1000pcs.
Art.-No. 151-01080 | CC-PAEKSFT65PT06-13-PA66HIRHS-BK

Copied
  • Connector easily installed by simply pushing into place
  • Connection can be released (non-destructive)
  • Arrowhead locks into place for secure fixing at all times
Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION CC-PAEKSFT65PT06-13-PA66HIRHS-BK
Pack Cont. 1000pcs.
Package Content packed in bag
Type CC-PAEKSFT65PT06-13

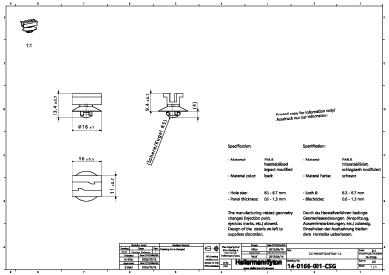

Height (H) 13.4mm
Length (L) 16.0mm
Panel Thickness max. 0.6 - 1.3mm
Weight/Unit 0.0008kg
Width (W) 16.0mm
for Hole ⌀ (FH) 6.3 - 6.7 mm
for Panel Thickness min - max 0.6 - 1.3 mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin FR
Customs Number 39269097
GTIN-13 / EAN 4031026501215
Packaging 1 - Height (m) 0.06m
Packaging 1 - Length (m) 0.32m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.004032
Packaging 1 - Weight (kg) 0.800001kg
Packaging 1 - Width (m) 0.21m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 10000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 8.96201kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.204m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 200000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.156
Packaging 4 - Weight (kg) 200.24kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 31162305
