17/05/2024

Connector clip, black, 500pcs.
Art.-No. 151-01618 | CC-V1FT6-PA66HIRHS-BK |  Details

Connector Clips are available for many different connector types and fixing varieties.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    Show more
    Add to watchlist
    Downloads
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC-V1FT6-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag

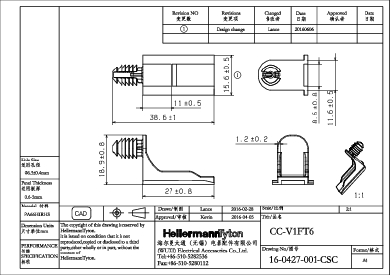

    Type CC-V1FT6
    Height (H) 27.0mm
    Length (L) 18.9mm
    Panel Thickness max. 0.6 - 5.0mm
    Width (W) 15.6mm
    for Hole ∅ (FH) 6.1 - 6.9 mm
    for Panel Thickness min - max 0.6 - 5 mm
    Country of Origin CN
    GTIN-13 / EAN 4031026563985
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
