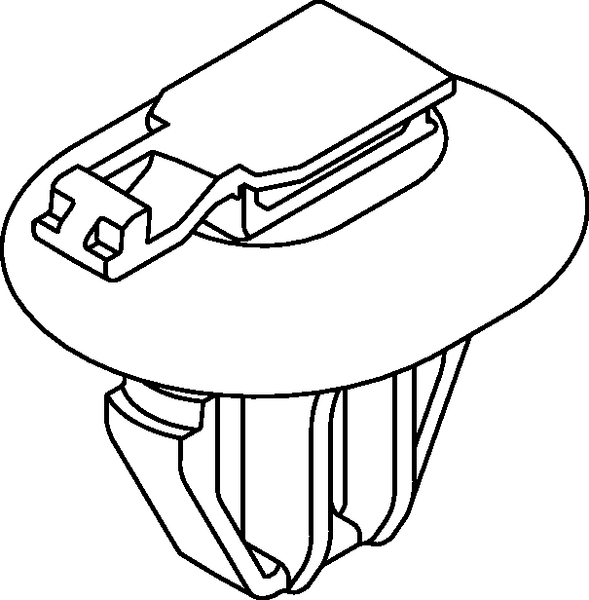

Connector clip, EWCAP-005-11, black, 1000pcs.
Art.-No. 151-03126 | CC11AH12X17-PA66HIRHS-BK

Copied

    • Easy to install by simply pushing into place
    • Connection can be released (non-destructive)
    • One fit tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dust and dirt gaining access
    Add to watchlist
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC11AH12X17-PA66HIRHS-BK
    Package Content 1000pcs.
    Package Content packed in pcs.
    Type CC11AH12X17
    Height (H) 30.94mm
    Length (L) 34.46mm
    Panel Thickness 4.25 - 4.75; 5.75 - 6.25mm
    Width (W) 28.13mm
    for Hole ⌀ (FH) 12.0 x 17.0 mm
    for Panel Thickness min - max 6.3 - 4.8 mm
    Operating Temperature -40 °C to +105 °C
    Operating Temperature, 1000h +160 °C
    Operating Temperature, 5000h +125 °C
    Operating Temperature, 500h +165 °C
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026634852
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.1397m
    Packaging 3 - Length (m) 0.51276m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0223m³
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
