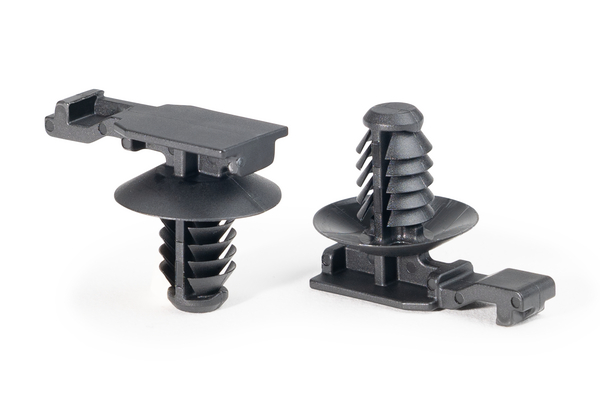

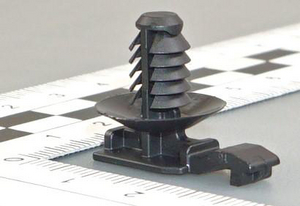

Connector clip for connector/for hole (round), EWCAP-005-11, black, 1500pcs.
Art.-No. 151-04254
| CC11FT6.5E3-PA66HIRHS-BK
Copied
- HellermannTyton connector clips provide a simple and easy method for mounting connectors to a mounting surface in a variety of applications.
- Detailed designs include anti-rattle disc features, anti-rotation oval fir trees, and clamps for mounting on edges.
- HellermannTyton offers an assortment of connector clips that are available for a variety of connector slot designs found on most of the largest global connector manufacturers.
| Application | The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry. |
| Brand Family | Connector-Series |
| Color | Black (BK) |
| Key product features | ergonomic design |
| PART DESCRIPTION | CC11FT6.5E3-PA66HIRHS-BK |
| Packaging Type | bag |
| Part No. | 151-04254 |
| Product family | Connector Clips |
| Product family | Connector Accessory |
| Type | CC11FT6.5E3 |

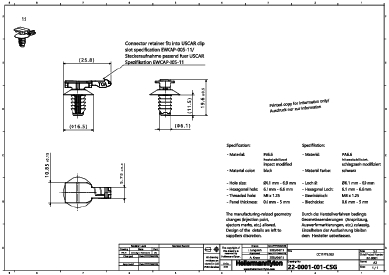

| Disc Diameter (metric) | 16.5mm |
| Fixation Method | Fir Tree |
| Height (metric) | 19.6mm |
| Height 2 (metric) | 11.5mm |
| Length (metric) | 25.8mm |
| Max. Panel Thickness (metric) | 5.0mm |
| Min. Panel Thickness (metric) | 0.6mm |
| Mounting Hole Diameter (metric) | 6.1 - 6.9 mm, 6.1 - 6.6 mm (hexagonal), M8 x 1.25 |
| Panel Thickness (metric) | 0.6 - 5.0mm |
| Width (metric) | 10.85mm |
| Width 2 (metric) | 5.75mm |
