Connector clip, black, 5000pcs.
Art.-No. 151-02459
| CC11FTM6-PA66HIRHSUV-BK
Copied
- Connector clip design to meet USCAR EWCAP-005-11 clip slot specifications.
- Meets installation and extraction requirements of SAE/USCAR-2.
- Versatile and robust fir tree design provides low insertion effort yet delivers exceptional retention strength in a 5mm hole and M6 threaded hole.

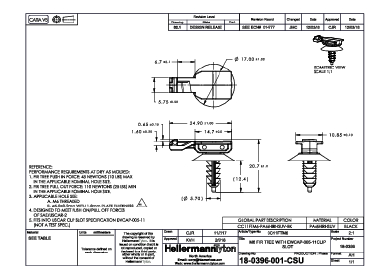

| Application | The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry. |
| Color | Black (BK) |
| Description | Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly. |
| PART DESCRIPTION | CC11FTM6-PA66HIRHSUV-BK |
| Packaging Type | pack |
| Part No. | 151-02459 |
| Product family | Connector Clips |
| Product family | Connector Accessory |
| Short Desc. | USCAR Connector Clip with Round Fir Tree, 11mm, 5.0 mm Dia and M6 Threaded Hole, PA66HIRHSUV, Black, 5000/ctn |
| Type | CC11FTM6 |
| UV Resistant | Yes |
| Disc Diameter (metric) | 17.5mm |
| Fixation Method | Fir tree for round holes |
| Height (imperial) | 0.814" |
| Height (metric) | 20.7mm |
| Length (imperial) | 0.98" |
| Length (metric) | 24.9mm |
| Max. Hole Depth (imperial) | 0.18" |
| Max. Hole Depth (metric) | 4.5mm |
| Max. Mounting Hole Diameter (imperial) | 0.276" |
| Max. Panel Thickness (imperial) | 0.18" |
| Max. Panel Thickness (metric) | 4.5mm |
| Min. Hole Depth (imperial) | 0.05" |
| Min. Hole Depth (metric) | 1.3mm |
| Min. Mounting Hole Diameter (imperial) | 0.256" |
| Min. Panel Thickness (imperial) | 0.05" |
| Min. Panel Thickness (metric) | 1.3mm |
| Mounting Hole Diameter (imperial) | 0.24 " |
| Mounting Hole Diameter (metric) | M6 |
| Mounting Hole Shape | Round |
| Panel Thickness (imperial) | 0.05 - 0.18" |
| Panel Thickness (metric) | 1.3 - 4.5mm |
| Slot Size (W2) | 11.0mm |
| Width (imperial) | 0.622" |
| Width (metric) | 15.8mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Material | PA66HIRHSUV |
| Material | Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV) |
| Operating Temperature | -40°F to +221°F (-40°C to +105°C) |
| Operating Temperature, 1000h | +320°F (+160°C) |
| Operating Temperature, 5000h | +257°F (+125°C) |
| Operating Temperature, 500h | +329°F (+165°C) |
| Prop65 Warning | No |
| REACH Conformity | Yes |
| ROHS compliant | Yes |
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
