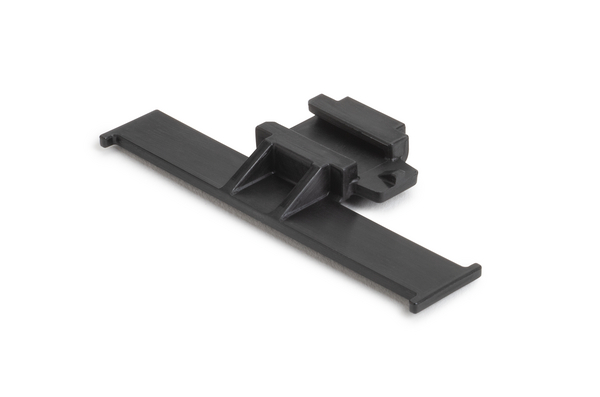

Connector clip, black, 2500pcs.
Art.-No. 151-04239 | CC11OSBC-A-PA66HIRHSUV-BK |

Copied

    • Easy to install by simply pushing into place
    • Connection can be released (non-destructive)
    • One fit tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dust and dirt gaining access
    Add to watchlist
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION CC11OSBC-A-PA66HIRHSUV-BK
    Package Content 2500pcs.
    Package Content packed in carton
    Type CC11OSBC-A
    UV-Stabilised Yes

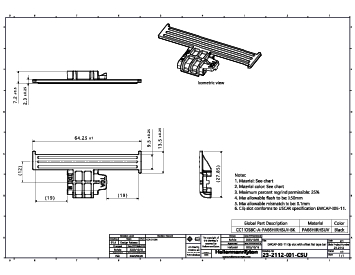

    Bundling Bar Length 2.53"
    Bundling Bar Length 64.3mm
    Height (H) 7.2mm
    Length (L) 64.3mm
    Offset Length 12.0mm
    Width (W) 13.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026744131
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20479m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Width (m) 0.314325m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
