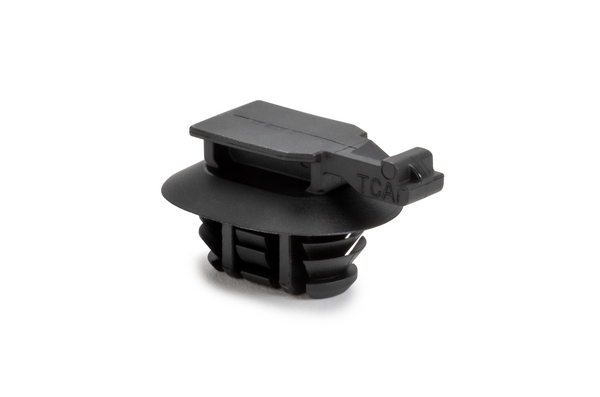

Connector clip, black, 2500pcs.
Art.-No. 151-04046 | CC11OVAL11-PA66HIRHSUV-BK |

Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.

Add to watchlist

Base Data

Colour	Black (BK)
Fixation Method	Arrowhead for oval holes
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	CC11OVAL11-PA66HIRHSUV-BK
Package Content	2500pcs.
Package Content packed in	carton
Type	CC11OVAL11
UV-Stabilised	Yes

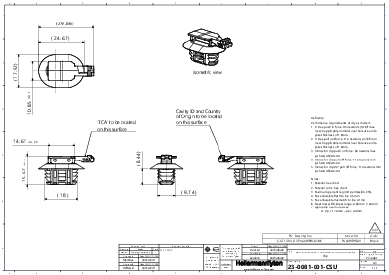

Product Dimensions

Height (H)	15.67mm
Length (L)	29.86mm
Panel Thickness max.	0.6 - 3.0mm
Width (W)	17.92mm
for Hole ⌀ (FH)	9.0 x 17.0 mm
for Panel Thickness min - max	0.6 - 3 mm

Downloads

Specifications

CE Certification	No
CSA Certified	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026730837
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.20955m
Packaging 3 - Length (m)	0.5175m
Packaging 3 - Qty	2500
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0344m³
Packaging 3 - Weight (kg)	4.75kg
Packaging 3 - Width (m)	0.3175m
Packaging 4 - Qty	100000

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
