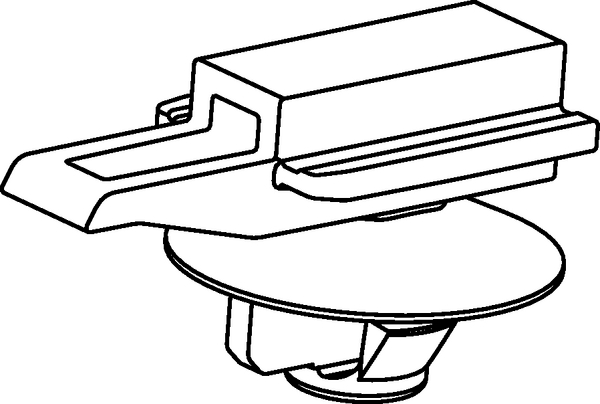

Connector clip, black, 10000pcs.
Art.-No. 151-03180 | CC32KHSFT6.5-PA66HIRHS-BK

Copied
  • Connector easily installed by simply pushing into place
  • Connection can be released (non-destructive)
  • Arrowhead locks into place for secure fixing at all times
Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION CC32KHSFT6.5-PA66HIRHS-BK
Pack Cont. 10000pcs.
Package Content packed in carton
Type CC32KHSFT6.5
Height (H) 15.0mm
Length (L) 25.0mm
Panel Thickness max. 1.7 - 2.3mm
Width (W) 16.3mm
for Hole ⌀ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 1.7 - 2.3 mm
Country of Origin CN
GTIN-13 / EAN 4031026642543
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 31162305
