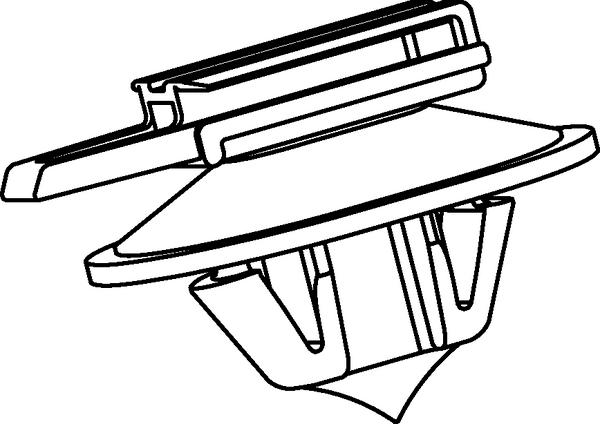

Connector clip, black, 500pcs.
Art.-No. 151-03328 | CC33SFT6.5X13-MD-PA66HIRHS/CR-BK |

Copied

    • Easy to install by simply pushing into place
    • Connection can be released (non-destructive)
    • One fit tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dust and dirt gaining access
    Add to watchlist
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Chloroprene Rubber (CR)
    PART DESCRIPTION CC33SFT6.5X13-MD-PA66HIRHS/CR-BK
    Package Content 500pcs.
    Package Content packed in bag

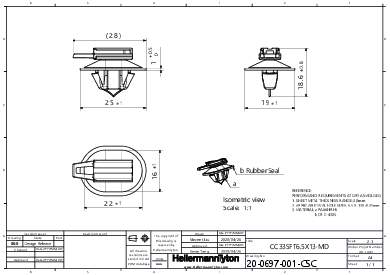

    Type CC33SFT6.5X13-MD
    Height (H) 18.6mm
    Length (L) 28.0mm
    Width (W) 19.0mm
    for Hole ⌀ (FH) 6.5 x 13.0 mm
    for Panel Thickness min - max 2 - 2 mm
    Country of Origin CN
    GTIN-13 / EAN 4031026651422
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
