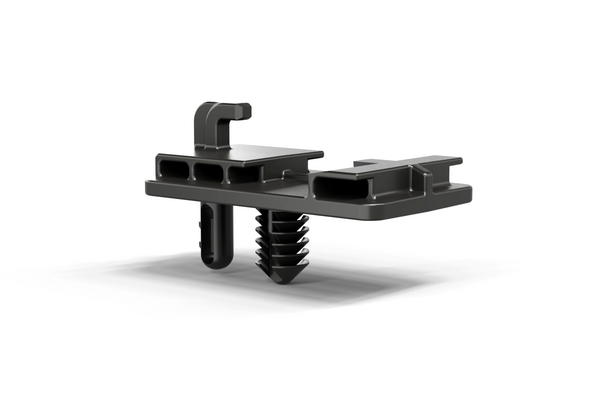

Bundling clip, black, 2500Carton
Art.-No. 133-02792 | CC7DBLFT6.5TS5-PA66HIRHS-BK

Copied
Application Bundling clips are designed to provide simple and easy methods of securing cable bundles, hoses, or pipes. They are fastened onto the tape bar using bundle or cable ties. The different fixing orientations allow tape clips to be used with a wide range of panel thicknesses and hole diameters. Standard bundling clips are available as well as standoff and stud mount versions.
Colour Black (BK)
Fixation Method Fir tree for round holes
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION CC7DBLFT6.5TS5-PA66HIRHS-BK
Pack Cont. 2500Carton
Package Content packed in carton

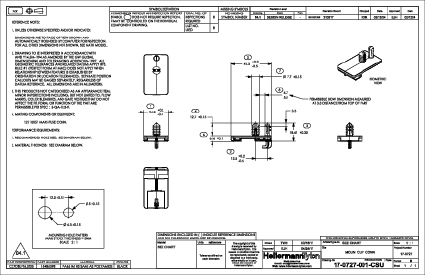

Type CC7DBLFT6.5TS5
Height (H) 18.61mm
Length (L) 41.5mm
Length of Fir Tree 12.7mm
Panel Thickness max. 1.5 - 5.0mm
Width (W) 24.8mm
for Hole ⌀ (FH) 7.7 - 7.85 mm
for Panel Thickness min - max 1.5 - 5 mm
CE Certification No
CSA Certified No
Operating Temperature -40 °C to +105 °C
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) No
UV-Stabilised Yes
Country of Origin MX
GTIN-13 / EAN 4031026580630
Packaging 3 - Height (m) 0.1730375m
Packaging 3 - Length (m) 0.57785m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0349
Packaging 3 - Width (m) 0.34925m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
