30/05/2025

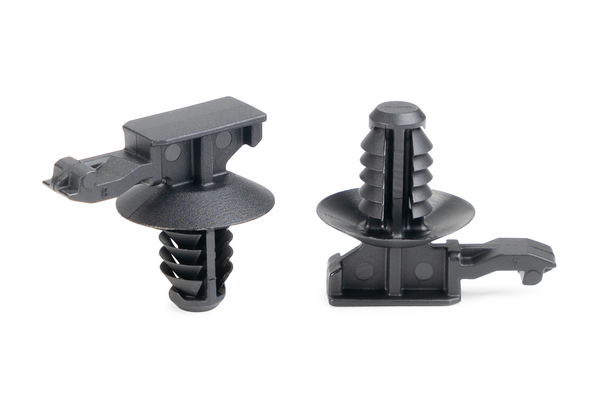

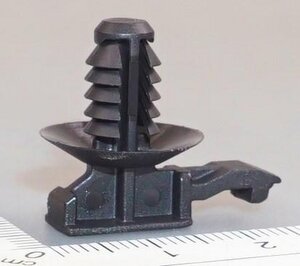

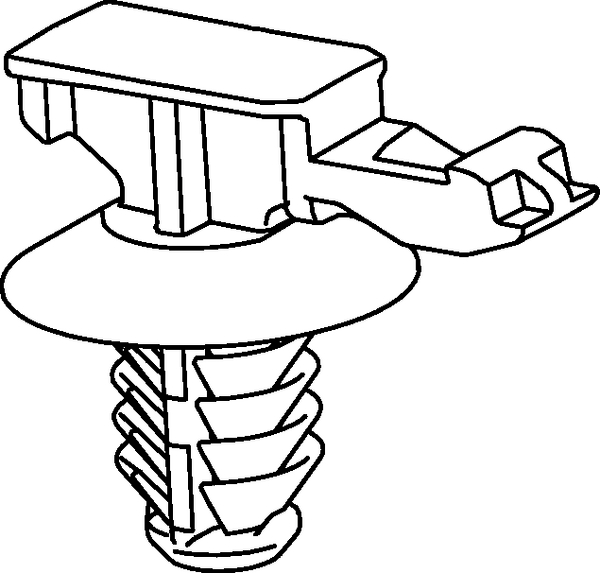

Connector clip for connector/for hole (round), black, 500pcs.
Art.-No. 151-04285 | CC7FT6.5E3-PA66HIRHS-BK |

Copied

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    Show more
    Add to watchlist
    Downloads
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Key product features ergonomic design
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CC7FT6.5E3-PA66HIRHS-BK
    Pack Cont. 500pcs.

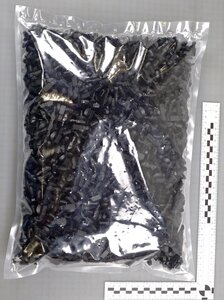

    Package Content packed in bag
    Type CC7FT6.5E3
    Type of connection USCAR7
    Variant 7 mm USCAR Connector Clip
    Disc ⌀ 16.5mm
    Height (H) 21.1mm
    Height (H2) 11.5mm
    Length (L) 25.4mm
    Panel Thickness max. 0.6 - 5.0mm
    Weight/Unit 0.000821kg
    Width (W) 7.45mm
    Width (W2) 5.4mm
    for Hole ⌀ (FH) 6.1 - 6.9 mm, 6.1 - 6.6 mm (hexagonal), M8 x 1.25
    for Panel Thickness min - max 0.6 - 5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026747798
    Packaging 1 - Height (m) 0.07m
    Packaging 1 - Length (m) 0.43m
    Packaging 1 - Qty 1500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0094815m³
    Packaging 1 - Weight (kg) 1.253315kg
    Packaging 1 - Width (m) 0.315m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 12000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 10.84652kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 144000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 151.176kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
