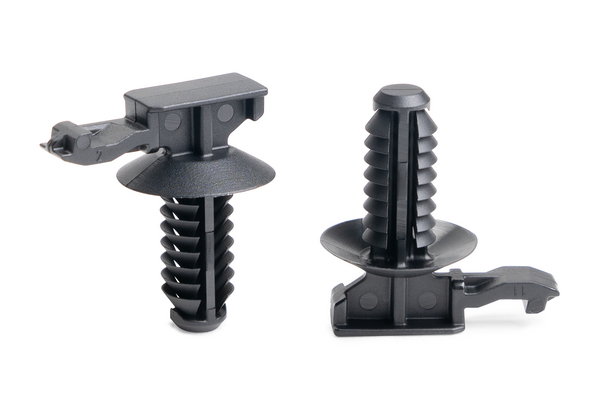

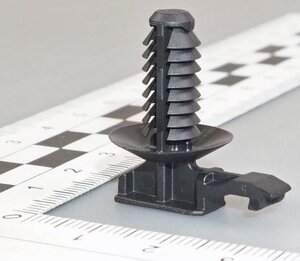

Connector clip, EWCAP-005-7, black, 2000pcs.
Art.-No. 151-04283 | CC7FT6.5LGE3-PA66HIRHS-BK

Copied
  • Connector easily installed by simply pushing into place
  • Connection can be released (non-destructive)
  • One fir tree foot part can be used for a variety of panel thicknesses
  • Disc covers the hole to prevent dirt and water gaining access
  • For twist protection: Variants with additional stick or for oval holes
Show more
Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
Colour Black (BK)
Fixation Method Fir Tree
Key product features ergonomic design
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION CC7FT6.5LGE3-PA66HIRHS-BK
Pack Cont. 2000pcs.
Package Content packed in bag
Type CC7FT6.5LGE3
Disc ⌀ 16.5mm
Weight/Unit 0.000936kg
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026747811
Packaging 1 - Height (m) 0.08m
Packaging 1 - Length (m) 0.45m
Packaging 1 - Qty 2000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0144
Packaging 1 - Weight (kg) 1.901135kg
Packaging 1 - Width (m) 0.4m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 14000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 14.127945kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 168000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 190.524kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 31162305
