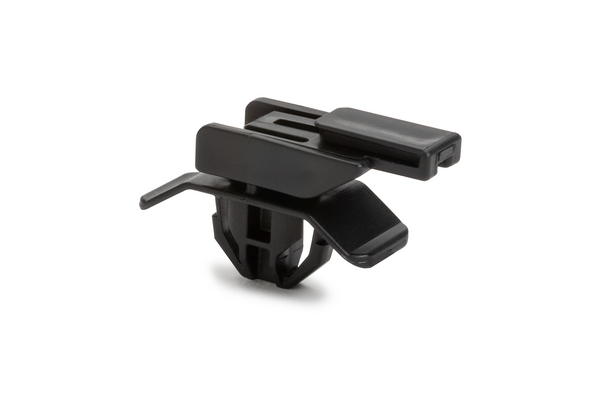

Connector clip, black, 2400Bag

Art.-No. 133-03060

| CCAH7X12PT0.5-3.0-PP-BK

|

Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
Engineered design options include anti-rattle disc, anti-rotation oval fir tree and clamp for mounting on edges. An assortment of connector clips is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.

Add to watchlist

Downloads

Base Data

Application	Connector clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
Colour	Black (BK)
Fixation Method	Connector Clip
Material	Polypropylene (PP)
PART DESCRIPTION	CCAH7X12PT0.5-3.0-PP-BK
Package Content	2400Bag
Package Content packed in	carton
Type	CCAH7X12PT0.5-3.0
UV-Stabilised	Yes
Weight/Unit	0.002kg

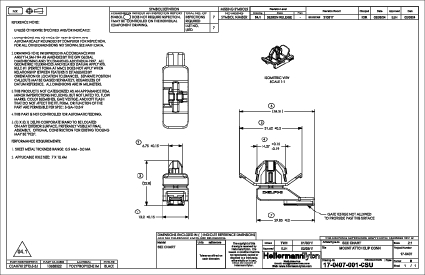

Product Dimensions

Height (H)	22.8mm
Length (L)	38.31mm
Panel Thickness	0.5 - 3.0mm
Width (W)	13.2mm
for Hole ⌀ (FH)	7.0 - 12.0 mm
for Panel Thickness min - max	0.5 - 3 mm

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	Yes
Hazardous Goods	No
Operating Temperature	-40 °C to +115 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging


Country of Origin	MX
Customs Number	39269097
GTIN-13 / EAN	4031026587172
Packaging 1 - Height (m)	0.15m
Packaging 1 - Length (m)	0.57m
Packaging 1 - Qty	2400
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.02907m³
Packaging 1 - Weight (kg)	4.800001kg
Packaging 1 - Width (m)	0.34m
Packaging 3 - Height (m)	0.37465m
Packaging 3 - Length (m)	0.59055m
Packaging 3 - Qty	2400
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0646m³
Packaging 3 - Weight (kg)	5.535001kg
Packaging 3 - Width (m)	0.2921m
Packaging 4 - Height (m)	1.269m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	28800
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.218m³
Packaging 4 - Weight (kg)	88.42kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
