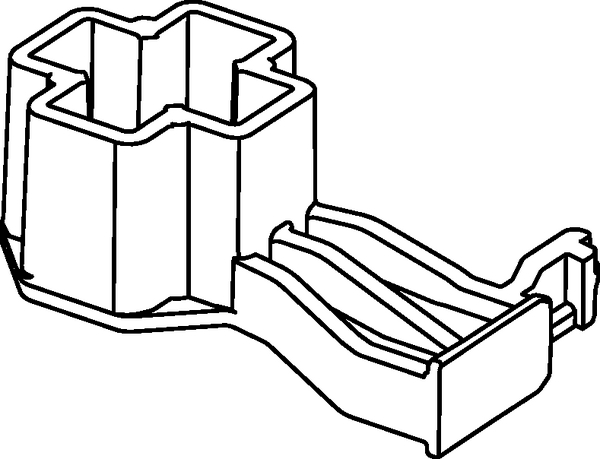

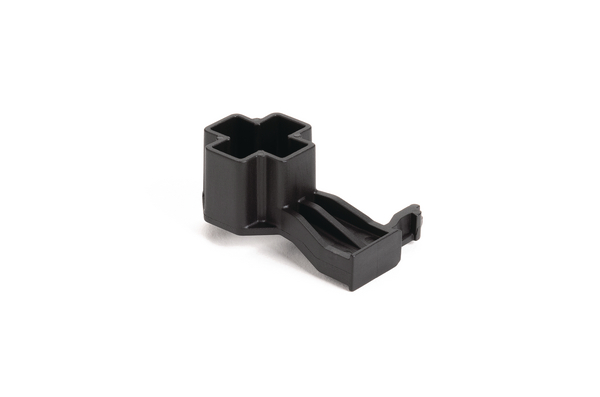

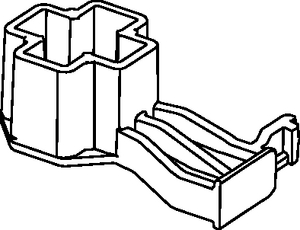

Connector clip, EWCAP-005-7, black, 2000pcs.
Art.-No. 151-02802 | CCM10SO28R-PA66HIRHSUV-BK

Connector clip designed to meet USCAR EWCAP-005-7 clip slot specifications, assuring compliance.
Meets installation and extraction requirements of SAE/USCAR-2, for ease of insertion and reliable performance.
Offset design allows for clearance from obstructions and sheet metal contours.

Application	The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Brand Family	OS-Series
Color	Black (BK)
Description	Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
PART DESCRIPTION	CCM10SO28R-PA66HIRHSUV-BK
Packaging Type	pack
Part No.	151-02802
Product family	Connector Clips
Product family	Connector Accessory, Products to use on studs
Short Desc.	Connector Clip with Offset M10 Thread Stud Mount, 28mm Offset, 7mm Conn Clip, PA66HIRHSUV, BK, 2000/ctn
Type	CCM10SO28R
UV Resistant	Yes

CE Certification	No
CSA Certified	No
Material	PA66HIRHSUV
Material	Polyamide 6.6 high impact modified, heat and UV stabilized (PA66HIRHSUV)
Operating Temperature	-40°F to +221°F (-40°C to +105°C)
Operating Temperature, 1000h	+320°F (+160°C)
Operating Temperature, 5000h	+257°F (+125°C)
Operating Temperature, 500h	+329°F (+165°C)
Prop65 Warning	No
REACH Conformity	Yes
ROHS compliant	Yes
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No


Customs Number (Schedule B)	3926909988
Harmonized Tariff Schedule Code	3926.90.9989
Pkg. Qty.	2000
Pkg. Qty.	2000Pieces
