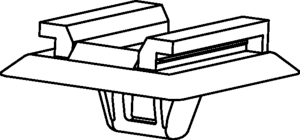

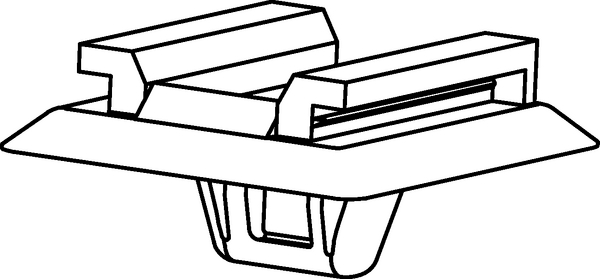

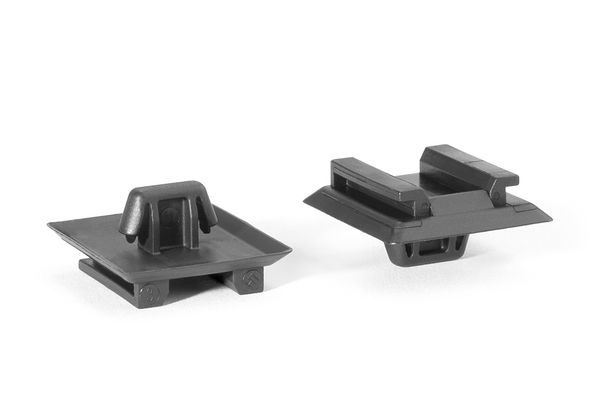

Connector clip, black, 1000pcs.

Art.-No. 151-02237

| CCPAEBSFT6.2X12.2TV-PA66HIRHS-BK

|

Easy to install by simply pushing into place
Connection can be released (non-destructive)
One fit tree foot part can be used for a variety of panel thicknesses
Disc covers the hole to prevent dust and dirt gaining access

Add to watchlist

Downloads

Base Data

Application	The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour	Black (BK)
Fixation Method	Arrowhead for oval holes
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	CCPAEBSFT6.2X12.2TV-PA66HIRHS-BK
Package Content	1000pcs.
Package Content packed in	bag
Type	CCPAEBSFT6.2X12.2TV
Weight/Unit	0.001719kg

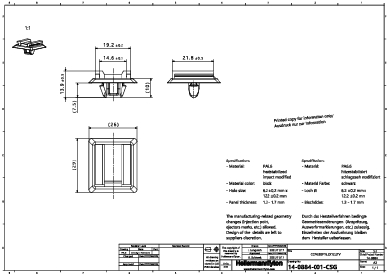

Product Dimensions

Height (H)	13.9mm
Height (H2)	6.4mm
Length (L)	29.0mm
Length (L2)	21.8mm
Panel Thickness	1.3 - 1.7mm
Width (W)	26.0mm
Width (W2)	19.2mm
for Hole ⌀ (FH)	6.2 x 12.2 mm
for Panel Thickness min - max	1.3 - 1.7 mm

Specifications

ELV compliant (Article 4 - 2)	Yes
Hazardous Goods	No
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	PL
Customs Number	39269097
GTIN-13 / EAN	4031026603841
Packaging 1 - Height (m)	0.075m
Packaging 1 - Length (m)	0.395m
Packaging 1 - Qty	1000
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.01333125m³
Packaging 1 - Weight (kg)	1.748135kg
Packaging 1 - Width (m)	0.45m
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	6000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	11.35961kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	72000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	158.308kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
