Connector clip, black, 1200pcs.


Art.-No. 151-02209

| CCSC-FT10LG-PA66HIRHS-BK

 |

Copied

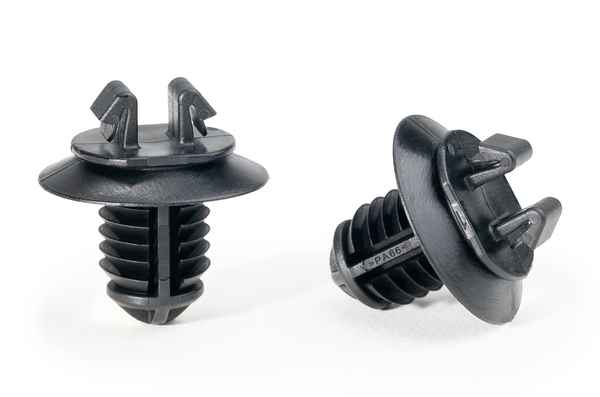

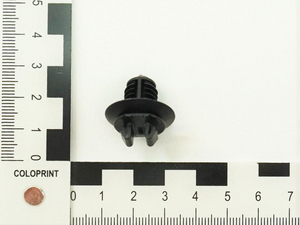

Connector clip with fir tree for round holes, to fix cable chanels, brackets and holders.
2241900

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    Add to watchlist

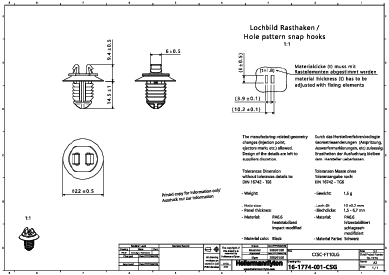

    Downloads CAD-Download
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCSC-FT10LG-PA66HIRHS-BK

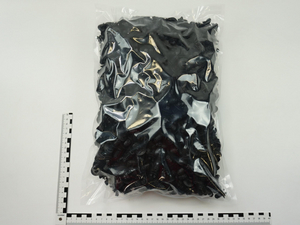

    Package Content 1200pcs.
    Package Content packed in bag
    Type CCSC-FT10LG
    Typical Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Weight/Unit 0.00126kg
    Height (H) 23.9mm
    Length (L) 22.0mm
    Panel Thickness 1.5 - 6.7mm
    Width (W) 22.0mm
    for Hole ⌀ (FH) 10.0 mm
    for Panel Thickness min - max 1.5 - 6.7 mm
    ELV compliant (Article 4 - 2) Yes
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026598147
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 1200
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 1.533815kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 8.635075kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.204m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.156m³
    Packaging 4 - Weight (kg) 194.72kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
