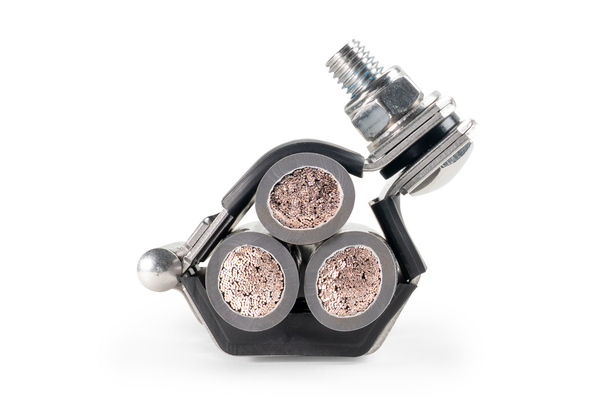

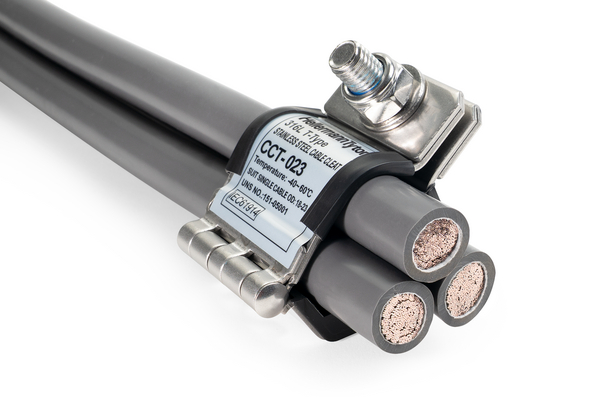

Cable cleat trefoil formation, SS316L, for cable diameters 33mm to 38mm, IEC61914-2021
Art.-No. 151-05005
| CCT038-SS316L/PO-ML
|
Copied
- Complies with IEC61914-2021 industry standards
- Marine grade SS316L
- Supplied with Hardware SS316L M8, M10 or M12 bolt and nylon lock nut
- Easy to install
- Ensures system integrity
- Protects people and equipment
- Retains cable under electromechanical forces caused by short circuit events
- 180kA peek at 300mm spacing
- 125kA peek at 600mm spacing
- Very heavy impact resistance
- Lateral load test average 25kg
- Axial load test pass
- Needle Flame test 30 seconds
- Resistance to UV light test 1000 hours
Show more
Show less
More products in this product group:
| Application | Cable cleats are designed to secure and support electrical cables within cable management systems, especially in environments exposed to high fault currents. Their primary role is to maintain cable alignment and containment under both normal operating conditions and during short-circuit events, where electromechanical forces can be extremely severe, Short circuits are unpredictable and potentially destructive when they occur, they pose serious risk to cables, infrastructure and personnel. That's why proper selection and installation of cable cleats is essential to ensure system integrity, protect equipment and people, comply with industry standards such as IEC61914, safeguarding your operations with confidence and reliability. |
| Cable ⌀ max | 38mm |
| Cable ⌀ min | 33mm |
| Colour | Metal (ML) |
| Description | Cable Cleat Trefoil Formation, manufactured form high grade SS316L stainless steel offering very high impact resistance for use in applications where short circuit events pose risk to equipment and people. |
| Fixation Method | Screw Mounting |
| Key product features | with protective insulation |
| Material | Stainless Steel (SS316L), Polyolefin compound unlinked (PO) |
| Mech. material properties | Very heavy impact resistance |
| Mounting Screw Type | M10 Screw |
| PART DESCRIPTION | CCT038-SS316L/PO-ML |
| Package Content | 1Bag |
| Package Content packed in | EA |
| Product Family | Cable Cleat Trefoil |
| Product Group | Cable Cleat Stainless Steel |
| Short Description | Cable cleat trefoil formation, SS316L, for cable diameters 33mm to 38mm, IEC61914-2021 |
| Type | CCT038 |
| UV-Stabilised | Yes |
| Variant | TREFOIL |
| Weight/Unit | 0.01kg |
| Corrosion Resistance (Yes/No) | Yes |
| ELV compliant (Article 4 - 2) | Yes |
| Flame resistant (Yes/No) | Yes |
| Flammability | non-burning |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +60 °C |
| ROHS compliant | Yes |
| Resistant to short circuit forces | Medium-/high voltage |
| Reusable (Yes/No) | Yes |
| Specifications |
|
| Specifications | IEC 61914:2021 |
